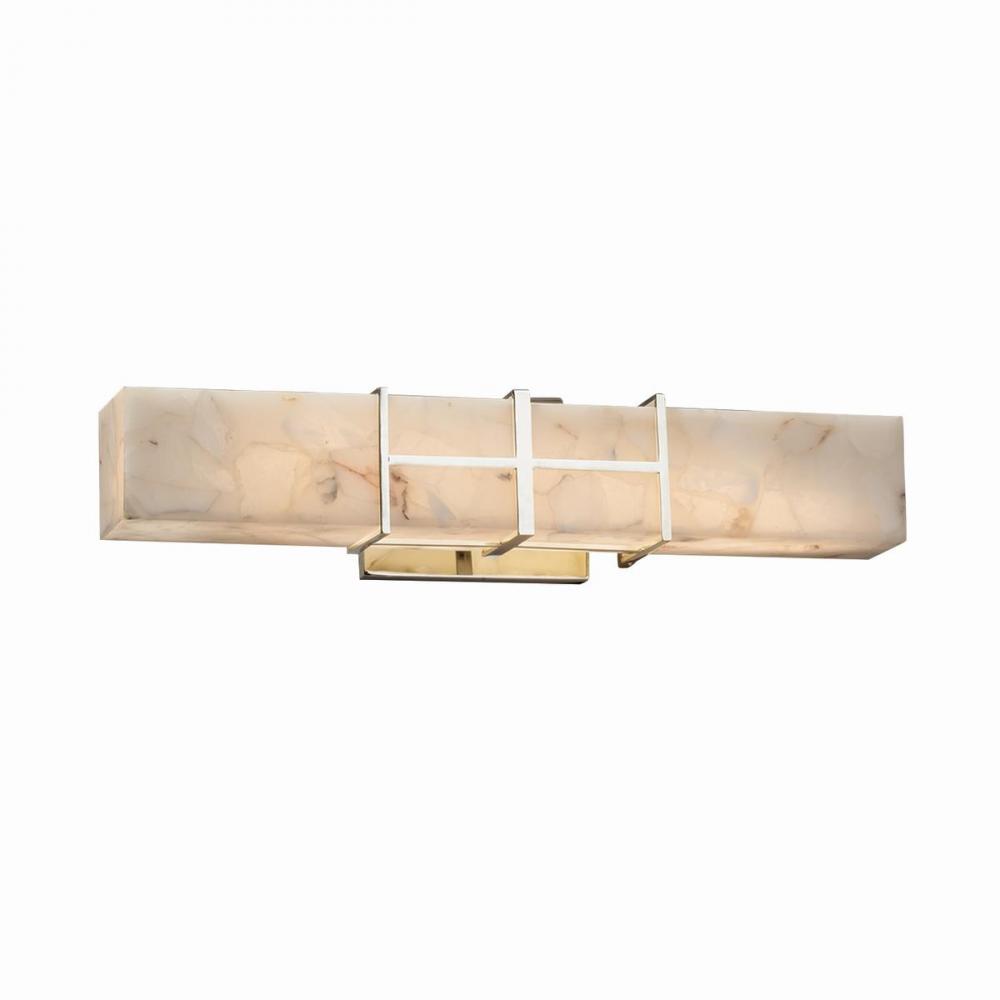

Structure Linear LED Wall/Bath (3MDV8W)

Product Specification

Item #

3MDV8W

Dimensions

Height: 4.50"

Width: 21.50"

Additional product details

Internal #

3MDV8W

Category

Linear Wall/Bath

Family

Carmel Family , Structure Family

Number Of Bulbs

2 Bulbs

Diameter

4" Dia. (Shade)

Extension

5.25

Lumens / Light Output

1,575 , 1575 , 2,100 , 3,500

Ship Carton Height

Ship Carton Length

Ship Carton Width

Ship Weight

Vendor Ship Method

FedEx Ground

ADA Compliant

Catalog

2017 CHOICES Main Catalog

Collection

Alabaster Rocks! Collection

Damp Rated

Yes

Dedicated LED Lamping

Standard

Item Options 1

Can be installed vertically or horizontally

Lead Time

Appx. 1 week or less

LED Wattage

19W

Metal Finish Options

Dark Bronze (DBRZ), Brushed Nickel (NCKL), Matte Black (MBLK), Polished Chrome (CROM)

Mounting Center

2.25" Horizontal; 10.75" Vertical

Notes 1

Dedicated LED engine included

Notes 2

Color Temperature = 3000K (2700K Available)

Notes 3

Minimum CRI = 90

Notes 4

Dimmable down to 5%

Notes 5

Dimming is compatible with Incandescent/Triac or ELV dimmers

Optional GU24 Fluorescent

See 8642

Optional GU24 LED

See 8642

Outdoor

Safety Rating

Suitable for Damp Locations

Shade Material

Shaved Alabaster Rocks Cast Into Resin

Size

4.5" H x 21.5" W x 5.25" Proj.

Standard Incan

See 8642 , See FAL-8165-10-MBLK-BKCD , See FAL-8165-12-DBRZ-BKCD , See FAL-8165-12-DBRZ-RIGID , See FAL-8165-12-MBLK-BKCD , See FAL-8165-12-MBLK-RIGID , See FAL-8165-12-NCKL-BKCD

Standard LED Lamping

Yes

Finish

Additional options that would change other selections

Included Items

Bulbs: (1) x 19 Watt LED
