Kute - 52 Inch - DZ with DWA Blade

Image may not reflect selected features

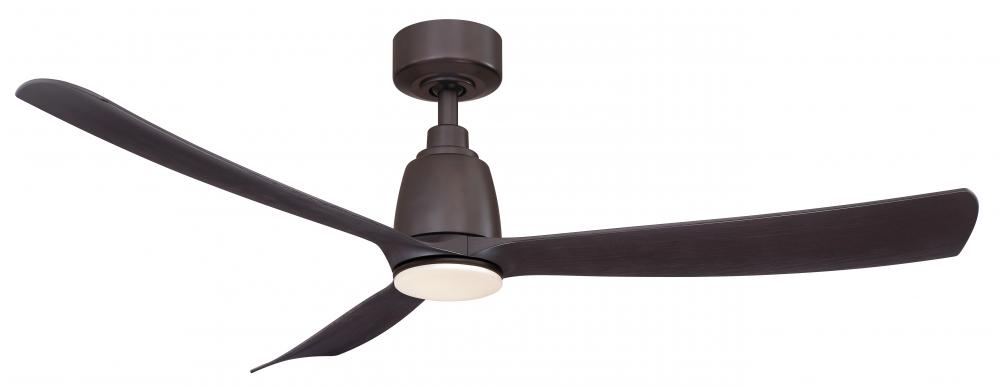

Kute - 52 Inch - DZ with DWA Blade (K4P2)

Kute is an understatement when it comes to this Fanimation ceiling fan. Kute is available in a 44 or 52 inch sweep with multiple finish options. This ceiling fan is Damp rated for use inside or out and includes a handheld remote control. The optional LED light kit that features the CCT Select Temperature feature and smart home compatibility, make this the perfect option for any home. fanSync WiFi receiver for smart home connectivity sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use

Energy Information at High Speed

Airflow

6701 Cubic Feet per Minute

Electricity Rate

36 Watts (excluded lights)

Airflow Efficiency

186 Cubic Feet Per Minute Per Watt

Downloads

Click Here to View Spec Sheet Details

Click Here to View Owners Manual

Product Specification

Item #

K4P2

Dimensions

Height: 13.10"

Width: 52.00"

Length: 52.00"

Additional product details

Internal #

K4P2

Category

Fans

Subcategory

Ceiling Fans with Light

Finish

Bronze

Style

Traditional

Option

Energy Star , Damp Rated

Voltage

10-99

Number of Blades

3 Blades

Subfinish

Dark Bronze

Location Rating

Damp Rated

Wattage

9w

Category

Fan-Uni

Finish

Dark Bronze

Option

Damp

Family

Kute 52

Voltage

120 V

Additional Info

6701 CFM on High , Compatible with most Smart home devices (required controls sold separately) , DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air , ENERGY STAR Most Efficient 2020 , Set of (3) Damp Rated blades with multiple finish options included - optional 17 watt LED light kit , TR205D handheld remote with CR2032 batteries included

Air Flow CFM

6701

Air Flow Efficiency

186

Amperage

0.55

Blade Finish

Dark Walnut

Blade Pitch

16

Canopy

5.75 Dia x 2.51 H

Diameter

5.59

Down Rod Included

4.5

Electricity Used

36

Harmonized Codes

8414.51.3000

Length

52

Light Kit Included

No

Material

Composite

Motor Fan Speed

16

Motor RPM

171

Motor Size

100 X 30

Motor Type

DC

Remote Control Included

TR205D

Ship Carton Height

11.34

Ship Carton Length

27.56

Ship Carton Width

7.68

Ship Weight

15.61

Sold By

Each

Warranty

Limited Lifetime

Weight

12.3

Airflow Efficiency Low

445

Airflow Efficiency Medium

480

Avg Airflow Efficiency

217

Avg CFM Energy

4873

Avg Energy Use Watts

22

Avg Estimated Yearly Energy Cost

6

Avg Estimated Yearly Energy Cost on HIGH

10

Blade Finish Method

Painted

Blade Material

Composite

Blade Reversible

No

Blade Sweep

52

Canopy Diameter

5.75 Dia

Canopy Height

2.51 H

Cap Included

Yes

Carton Cubic Feet

1.39

Cartons Per Unit

1

Case Height

11.34

Case Length

27.56

Case Quantity

1

Case Weight Pounds

15.61

Case Width

7.68

CEC Uploaded

Yes

Ceiling To Blade Edge

12.58

Ceiling To Bottom

13.1 , 13.78

CFM Low

917

CFM Medium

4112

Compatible Accessories

CCK8002DZ, DR1-12DZ, DR1-18DZ, DR1-24DZ, DR1-36DZ, DR1-48DZ, DR1-60DZ, DR1-72DZ, DR1-CPDZ, SCB1-52

Compatible Light Kits

LK8534DZ

Compatible Wall Controls

TW306

Country of Origin

China

Current Draw High

0.55

Current Draw Low

0.05

Current Draw Medium

0.14

Damp Rated

Yes

DOE Classification

LSSD

DOE-FTC Uploaded

Yes

DOEFTC Uploaded

Yes

Downrod Length

4.5

Exempt from DOE Procedure

No

Fan Energy Star

Yes

Housing Diameter

5.59

Included Control

TR305

Included Control Type

Handheld

Leadwire

54

Light Kit Energy Star

Yes

Max Ceiling Slope

27

Max Watt

36

Maximum Slope Degree

27

Motor Finish Method Type

Painted

Motor Reversible

Yes

Number of Blades

3

Number Of Speeds

16

Regulated Product

Yes

Reverse Switch Location

Control

RPM High (VI)

171

RPM Low (II)

29

RPM Medium (IV)

107

RPM Medium IV

103

Safety Rating

UL Approved, cUL Approved

Voltage Cycles

60 hz

Watts Low

2

Watts Medium

9

Other Details:

6701 Cfm On High
Compatible With Most Smart Home Devices (required Controls Sold Separately)
Dc Motor With Reverse Switch, Variable Fan Speeds, Light Control, Sleep Timer, Home Away, Fresh Air
Energy Star Most Efficient 2022
Set Of (3) Damp Rated Blades With Multiple Finish Options Included - Optional 17 Watt Led Cct Select Light Kit
Tr305 Handheld Remote With 23a Battery Included
