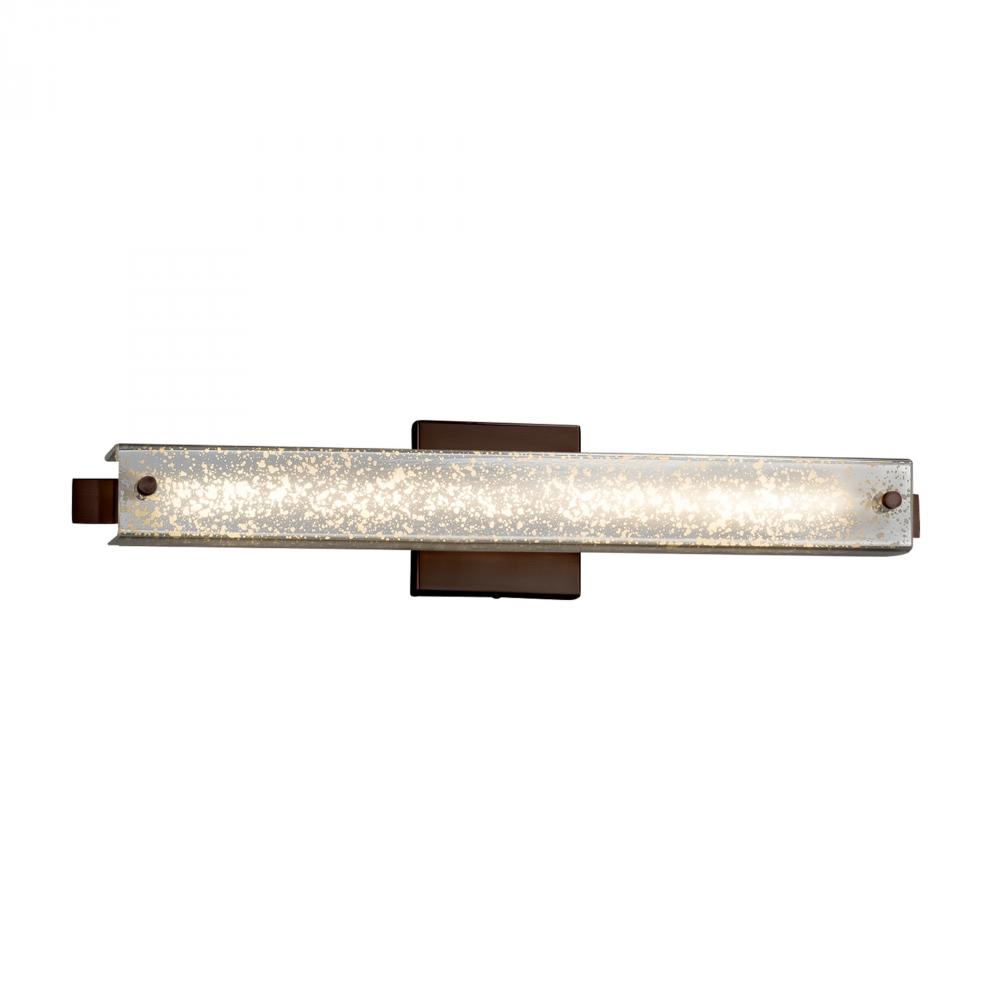

Edge 23" ADA Linear LED Wall/Bath (7749N1)

Product Specification

Item #

7749N1

Dimensions

Height: 4.50"

Width: 23.00"

Additional product details

Internal #

7749N1

Category

Linear Wall/Bath

Family

Edge Family

Number Of Bulbs

2 Bulbs

Diameter

4" Dia. (Shade)

Extension

Lumens / Light Output

1,575 , 2,100 , 3,500

Ship Carton Height

Ship Carton Length

Ship Carton Width

Ship Weight

Vendor Ship Method

FedEx Ground

ADA Compliant

Yes

Catalog

2017 CHOICES Main Catalog

Collection

Fusion Collection

Damp Rated

Yes

Dedicated LED Lamping

Standard

Item Options 1

Can be installed vertically or horizontally

Item Options 2

Also available in 31" Width. See FSN-8685.

Lead Time

Appx. 1 week or less

LED Wattage

19W

Metal Finish Options

Dark Bronze (DBRZ), Brushed Nickel (NCKL), Matte Black (MBLK), Polished Chrome (CROM)

Mounting Center

2.25” Horizontal; 11.5” Vertical

Notes 1

Dedicated LED engine included

Notes 2

Color Temperature = 3000K (2700K Available)

Notes 3

Minimum CRI = 90

Notes 4

Dimmable down to 5%

Notes 5

Dimming is compatible with Incandescent/Triac or ELV dimmers

Outdoor

Safety Rating

UL Listed for Damp Locations

Shade Color Options

Mercury (MROR), Opal (OPAL), Weave (WEVE)

Shade Material

Artisan Glass

Size

4.5” H x 23” W x 3” Proj.

Standard Incan

See FAL-8165-10-MBLK-BKCD , See FAL-8165-20-CROM-BKCD , See FAL-8171-10-CROM , See FAL-8171-10-DBRZ , See FAL-8171-10-MBLK , See FAL-8671-15-MBLK , See FAL-8701-20-NCKL

Standard LED Lamping

Yes

Finish

Additional options that would change other selections

Included Items

Bulbs: (1) x 19 Watt LED
