Aire Deluxe - 52 inch - BN with CY/DWA Blades

Image may not reflect selected features

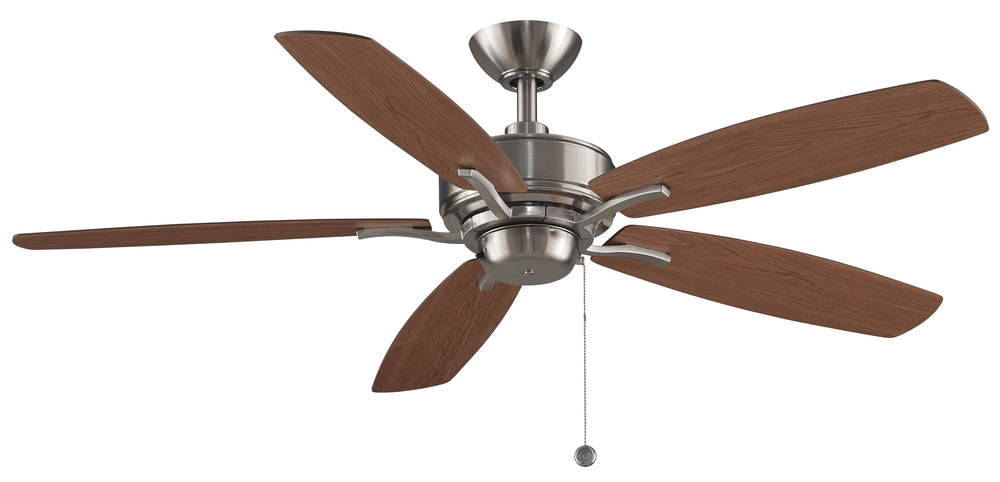

Aire Deluxe - 52 inch - BN with CY/DWA Blades (G4ZX)

Aire Deluxe from Fanimation is an exceptional transitional design for any and every indoor space. Available in 52 and 44 inch blade sweeps, three different finishes, a variety of blade finishes, and with the option of a light kit. With all of the possibilities, there is an Aire Deluxe for everyone. The Aire Deluxe features an AC motor that operates on three forward and three reverse speeds. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Energy Information at High Speed

Airflow

4908 Cubic Feet per Minute

Electricity Rate

55 Watts (excluded lights)

Airflow Efficiency

89 Cubic Feet Per Minute Per Watt

Downloads

Click Here to View Spec Sheet Details

Click Here to View Owners Manual

Product Specification

Item #

G4ZX

Dimensions

Height: 12.77"

Width: 52.00"

Length: 52.00"

Additional product details

Internal #

G4ZX

Category

Fans

Subcategory

Ceiling Fans with Light

Finish

Nickel

Style

Traditional

Option

Dry Rated

Voltage

10-99

Number of Blades

5 Blades

Location Rating

Dry Rated

Category

Fan-Uni

Finish

Brushed Nickel

Option

Dry Rated

Family

Aire Deluxe

Voltage

120 V

Additional Info

3 speed AC motor with reverse switch , 3941 CFM on High , Lifetime Limited Warranty , Pull Chain Operated , Set of 5 reversible 52 inch blades and (2) 9 watt LED bulbs and light kit included , WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM

4908

Air Flow Efficiency

89

Amperage

0.46

Blade Finish

Cherry/Dark Walnut

Blade Pitch

12

Blade Span

52

Canopy

5.91 Dia x 2.13 H

Diameter

9.06

Down Rod Included

4.5

Electricity Used

55

Harmonized Codes

8414.51.3000

Length

52

Light Kit Included

No

Material

Wood

Motor Fan Speed

3

Motor RPM

158

Motor Size

153 X 15

Motor Type

AC

Pull Chain Included

Yes

Ship Carton Height

9.3

Ship Carton Length

23

Ship Carton Width

10.9

Ship Weight

17.67

Sold By

Each

Warranty

Limited Lifetime

Weight

15.36

Airflow Efficiency Low

183

Airflow Efficiency Medium

126

Avg Airflow Efficiency

102

Avg CFM Energy

3496

Avg Energy Use Watts

34

Avg Estimated Yearly Energy Cost

10

Avg Estimated Yearly Energy Cost on HIGH

15

Blade Finish Method

Paper Overlay

Blade Material

Wood

Blade Reversible

Yes

Blade Sweep

52

Canopy Diameter

5.91 Dia

Canopy Height

2.13 H

Cap Included

No

Carton Cubic Feet

1.35

Cartons Per Unit

1

Case Height

9.3

Case Length

23

Case Quantity

1

Case Weight Pounds

17.67

Case Width

10.9

CEC Uploaded

Yes

Ceiling To Blade Edge

10.59

Ceiling To Bottom

12.77

CFM Low

1897

CFM Medium

3288

Compatible Accessories

CCK8002BN, DR1-12BN, DR1-18BN, DR1-24BN, DR1-36BN, DR1-48BN, DR1-60BN, DR1-72BN, DR1-CPBN, SCK1-52BN

Compatible Controls

BTCR9, BTR9, CR500, CRL4WH, WFR50

Compatible Wall Controls

CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH

Country of Origin

China

Current Draw High

0.46

Current Draw Low

0.2

Current Draw Medium

0.33

DOE Classification

LSSD

DOE-FTC Uploaded

Yes

DOEFTC Uploaded

Yes

Downrod Length

4.5

Dry Rated

Yes

Exempt from DOE Procedure

No

Fan Energy Star

No

Housing Diameter

9.06

Included Control Type

Pull Chain

Leadwire

54

Max Ceiling Slope

19

Max Watt

55

Maximum Slope Degree

19

Motor Finish Method Type

Plated

Motor Reversible

Yes

Number of Blades

5

Number Of Speeds

3

Regulated Product

Yes

Reverse Switch Location

Switch Housing

RPM High (VI)

158

RPM Low (II)

66

RPM Medium (IV)

113

Safety Rating

UL Approved, cUL Approved

Voltage Cycles

60 hz

Watts Low

10

Watts Medium

26

Other Details:

3 Speed Ac Motor With Reverse Switch
3941 Cfm On High
Lifetime Limited Warranty
Pull Chain Operated
Set Of 5 Reversible 52 Inch Blades And (2) 9 Watt Led Bulbs And Light Kit Included
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
