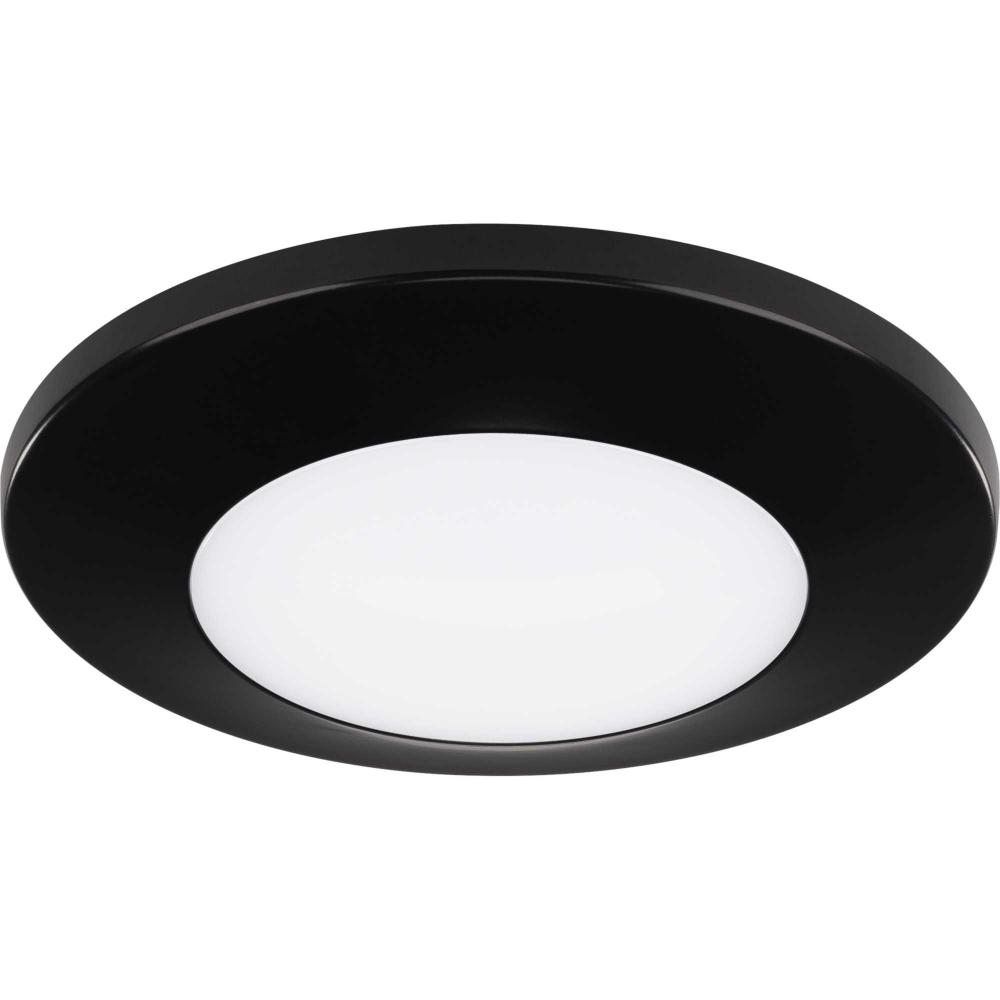

7-1/4" Emblem Collection Surface Mount LED in Antique Bronze
Image may not reflect selected features
/vendors/149/large/prog_p810014_020-30_hero_prodimage.jpg
additional image
additional image
additional image
additional image
7-1/4" Emblem Collection Surface Mount LED in Antique Bronze (AQ5X8)
Revel in the brilliant combination of easy installation and a sleek, modern lighting aesthetic offered by our Emblem Surface Mount LED Collection. A symbol of clean, classic designs with smooth, eye-appealing curvature, Emblem provides you with familiar lighting shapes and functional features engineered for both outstanding performance and unparalleled longevity. An excellent choice for general ambient lighting, each polished design features a smooth, slightly tapered trim ring surrounding a single, integrated LED light source. Each trim ring is available in two different sizes and finishes to help meet your unique design needs. Enjoy the unmatched level of glare control offered by the fixture’s diffused polycarbonate lens that also hides any unwanted LED pixilation. Each light fixture is home to an integrated AC LED light engine that seamlessly installs to a variety of ceiling pan junction boxes to give you added flexibility when it comes to creating your design vision. The surface mount will also satiate the cravings of any environmentally-aware and cost-savvy buyer with the fixture's long-lasting, 50,000-hour LED life span and 80% energy savings.
Downloads
Click Here to View Spec Sheet
Click Here to View Installation Sheet
Click Here to View Warranty
Product Specification
Item #
AQ5X8
Dimensions
Height: 1.38"
Width: 7.25"
Length: 7.25"
Additional product details
Internal #
AQ5X8
Category
Exterior , Flush Mounts
Subcategory
Exterior Flush mounts , Outdoor Flush Mounts
Finish
Bronze
Style
Transitional
Option
Energy Efficient , Energy Star , Title 24 , Wet Rated , LED , Title 20
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Wet Rated
Category
Close-to-Ceiling
Finish
Antique Bronze
Option
Energy Efficient , Energy Star , Title 20 , Title 24 , Wet Rated
Family
Emblem
Glass
Diffused
Voltage
120
Number of Bulbs
1 Bulbs
Bulb Hours
50000
Bulb Type
Integrated LED
Introduction Date
01/01/2020
Kelvin
3000
Length
7.25
Lumens / Light Output
1080
Material
ADC12
Ship Carton Height
7.93
Ship Carton Length
7.50
Ship Carton Width
2.43
Ship Weight
1.19
Special Features
Integrated AC LED technology 3000K, 90 CRI, 1000 lumens (delivered);Die-cast aluminum construction with a powder coat paint finish;Diffused polycarbonate lens controls direct glare from the LEDs;Simple snap in installation for J-Box with 1/2" minimum d
Vendor Ship Method
Non UPS Shippable False
Warranty
5 year
Weight
1.02
Wire Included
6 in
Americans with Disabilities Act
No
Bulb Base
Integrated
Bulb CRI
90 CRI
Bulb Included
Yes
Can be Mounted Up or Down
No
Certified Listed Location
Wet Location Listed
Construction Material Main Part
Construction
Country of Origin
CN
Dark Sky
No
Design Series
No
Dimming Compatability
IDevices_IDEV0009;Leviton_Trimatron 6681;Leviton_SureSlide 6672;Leviton_SureSlide 6674;Lutron_Nova T VTELV-300;Lutron_Diva DVELV-300P;Lutron_Diva DVCL-253P;Lutron_Caseta Wireless;Lutron_Ariadni AYCL-153P;Lutron_Toggler TGCL-153PH-WH;Lutron_Maestro MACL-153
Dimming Protocol
Triac/Forward Phase;ELV/Reverse Phase
Energy Efficient
Yes
Energy Star
Yes
Finish Type
Painted
Frequency Rating
60 Hz
Glass Shape
Lens
Grounded Convenience Outlet included
No
JA8
2019
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Lamp Wattage
15.5
Lens Shade Material
Polycarbonate
Lumens per Watt
69.70
Mount location
Wall Or Ceiling
MTO
No
Operating Temperature Celcius Max
30 °C
Prop 65
Yes
Safety Rating
cCSAus
Starting Temperature Minimum
-30 °C
Sub Brand
Progress LED
Title 20
Yes
Title 24
Yes
Weight of Fixture Exceeds NEC Limits
No
Finish
Additional options that would change other selections
Included Items
Bulbs: (1) x 15.5 Watt Integrated LED
Call for Price
Qty:
Add To Quote
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 216 items available.
