Wrap Custom Motor - BL

Image may not reflect selected features

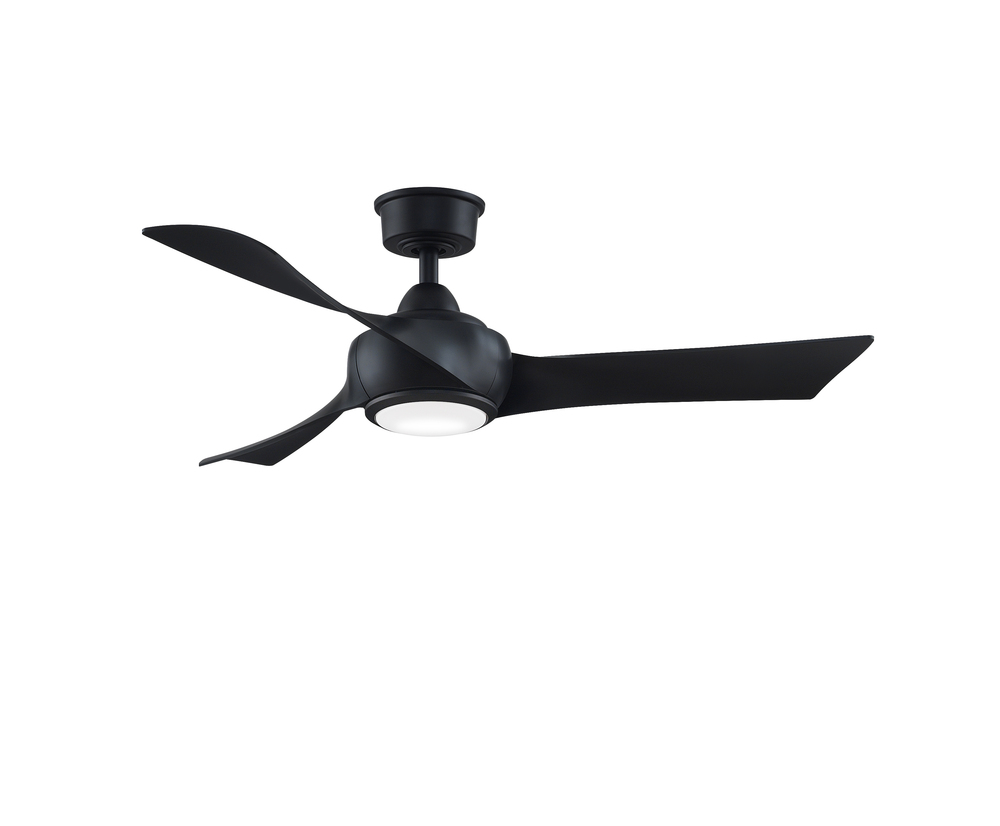

Wrap Custom Motor - BL (G9V5)

Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. LED and CCT Select Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use

Energy Information at High Speed

Airflow

7141 Cubic Feet per Minute

Electricity Rate

36 Watts (excluded lights)

Airflow Efficiency

200 Cubic Feet Per Minute Per Watt

Downloads

Click Here to View Spec Sheet Details

Click Here to View Owners Manual

Product Specification

Item #

G9V5

Dimensions

Height: 12.46"

Width: 44.00"

Length: 44.00"

Additional product details

Internal #

G9V5

Category

Fans

Subcategory

Fan Motor Without Blades

Finish

Black

Style

Traditional

Option

Energy Star , Damp Rated

Voltage

10-99

Number of Blades

3 Blades

Location Rating

Damp Rated

Wattage

8w

Category

Fan-Multi

Finish

Black

Option

Damp

Family

Wrap Custom

Voltage

120 V

Additional Info

7141 CFM on High , Compatible with most Smart home devices (required controls sold separately) , DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and , ENERGY STAR Most Efficient 2020 , Set of 3 Damp Rated blades with multiple finish options and 18 watt LED light kit (sold separately) , TR205D handheld remote with CR2032 batteries included

Air Flow CFM

7141

Air Flow Efficiency

200

Amperage

0.49

Blade Pitch

Varied

Canopy

6.14 Dia x 2.55 H

Diameter

8.88

Down Rod Included

4.5

Electricity Used

36

Harmonized Codes

8414.51.3000

Length

44, 48, 52, 56, 60

Light Kit Included

No

Max Length

60

Max Width

60

Motor Fan Speed

16

Motor RPM

138

Motor Size

158 X 22

Motor Type

DC

Remote Control Included

TR205D

Ship Carton Height

7.6

Ship Carton Length

16.34

Ship Carton Width

8.86

Ship Weight

14.99

Sold By

Each

Warranty

Limited Lifetime

Weight

12.13

Airflow Efficiency Low

404

Airflow Efficiency Medium

552

Avg Airflow Efficiency

211

Avg CFM Energy

5114

Avg Energy Use Watts

24

Avg Estimated Yearly Energy Cost

7

Avg Estimated Yearly Energy Cost on HIGH

10

Canopy Diameter

6.14 Dia

Canopy Height

2.55 H

Cap Included

Yes

Carton Cubic Feet

0.64

Cartons Per Unit

1

Case Height

7.6

Case Length

16.34

Case Quantity

1

Case Weight Pounds

14.99

Case Width

8.86

CEC Uploaded

Yes

Ceiling To Blade Edge

11.83

Ceiling To Bottom

12.46 , 13.05

CFM Low

728

CFM Medium

4359

Compatible Accessories

CCK8002BL, DR1-12BL, DR1-18BL, DR1-24BL, DR1-36BL, DR1-48BL, DR1-60BL, DR1-72BL, DR1-CPBL, SCB1-52

Compatible Blades

BPW8530-44BL, BPW8530-44BN, BPW8530-44DWA, BPW8530-44N, BPW8530-44WE, BPW8530-44WW, BPW8530-48BL, BPW8530-48BN, BPW8530-48DWA, BPW8530-48N, BPW8530-48WE, BPW8530-48WW, BPW8530-52BL, BPW8530-52BN, BPW8530-52DWA , BPW8530-52N, BPW8530-52WE, BPW8530-52WW, BPW8530-56BL, BPW8530-56BN, BPW8530-56DWA, BPW8530-56N, BPW8530-56WE, BPW8530-56WW, BPW8530-60BL, BPW8530-60BN, BPW8530-60DWA, BPW8530-60N, BPW8530-60WE, BPW8530-60WW

Compatible Light Kits

LK8530BL

Compatible Wall Controls

TW306

Country of Origin

China

Current Draw High

0.49

Current Draw Low

0.04

Current Draw Medium

0.13

Damp Rated

Yes

DOE Classification

LSSD

DOE-FTC Uploaded

Yes

DOEFTC Uploaded

Yes

Downrod Length

4.5

Exempt from DOE Procedure

No

Fan Energy Star

Yes

Housing Diameter

8.88

Included Control

TR305

Included Control Type

Handheld

Leadwire

80

Max Ceiling Slope

27

Max Watt

36

Maximum Slope Degree

27

Motor Finish Method Type

Painted

Motor Reversible

Yes

Number of Blades

3

Number Of Speeds

16

Regulated Product

Yes

Reverse Switch Location

Control

RPM High (VI)

138

RPM Low (II)

29

RPM Medium (IV)

88

Safety Rating

UL Approved, cUL Approved

Voltage Cycles

60 hz

Watts Low

2

Watts Medium

8

Other Details:

7141 Cfm On High
Compatible With Most Smart Home Devices (required Controls Sold Separately)
Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
Energy Star Most Efficient 2022
Set Of (3) Damp Rated Blades With Multiple Finish Options Available And 18 Watt Led Cct Select Light Kit Available (sold Separately)
Tr305 Handheld Remote With 23a Battery Included

Ceiling To Bottom
