LED Troffer - 40W - 2 ft. x 4 ft.- 5000K - 100-277V
Image may not reflect selected features

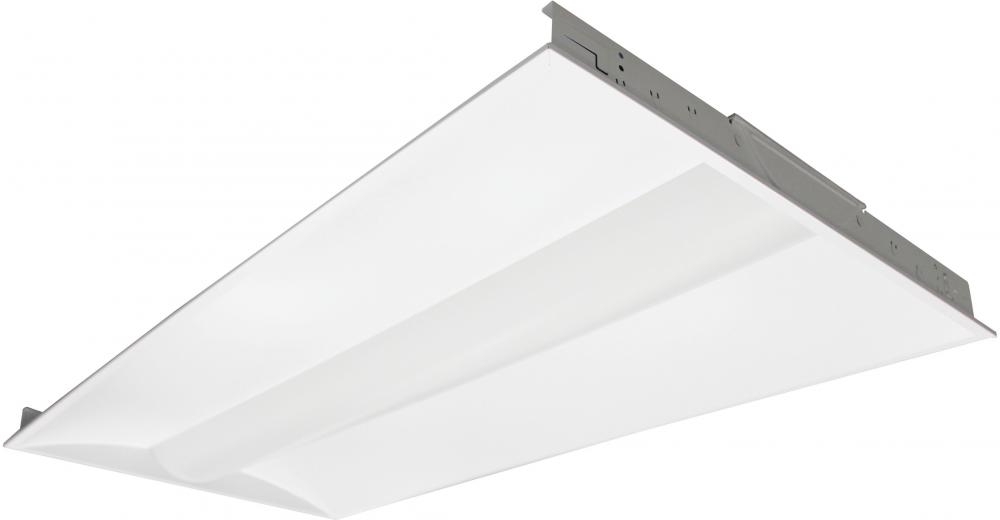

LED Troffer - 40W - 2 ft. x 4 ft.- 5000K - 100-277V (A35H3)
LED Troffer Fixture; 40W; 2 ft. x 4 ft.; 5000K; 100-277V
Product Specification
Item #
A35H3
Dimensions
Height: 2.75"
Width: 23.59"
Additional product details
Internal #
A35H3
Category
Specialty Items
Subcategory
Lighting Accessories
Finish
White
Style
Traditional
Option
LED , Prop 65
Category
Troffer
Sub Category
Center Basket
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Natural Light
Dimmable
Yes-Dimmable
Each Height
27.09
Each Length
50
Each Width
5.83
Length
47.59
Lumens
5000L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Amps
0.400-0.144A
ANSI Base
Integrated
BAA Compliant
No
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
Connection
Direct Wired
Country Of Origin
China
CRI
80
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Standard
DLC Primary Use
2x4 Luminaires for Ambient Lighting of Interior Commercial Spaces
Each Cube
4.5699
Each Quantity
1
Efficacy
125.00 LPW
FCC Compliant
Yes
Feature 1
Length: 47.59 inches, Width: 23.59 inches, Height; 2.75 inches
Feature 2
Dimmable
Feature 3
Damp location rated for indoor use
Feature 4
5000K Natural White Light
Feature 5
Superior 80 CRI light quality
Feature 6
5 year limited warranty
Feature 7
5000 lumens
Feature 8
Rated for 50,000 hours
Feature 9
FCC and RoHS compliant
Finish Family
White
Fixture shape
Rectangle
Flicker Free
Yes
Has Driver
Yes
IC Rated
Yes
Incandescent Equivalent
175W
Indoor Outdoor
Indoor
JA8 Compliant
No
Lens Material
Polycarbonate (PC)
Long Description
Satco's 65-429 40 watt, 2' X 4' Troffer fixture provides broad, even light distribution in all commercial applications. Illuminate your office or work space with this energy saving, maintenance free, LED fixture. With an acrylic prismatic lens
Material
Steel
Mounting Procedure
Ceiling
Operating Temp
-20C (-4F) to +40C (+104F)
Pack Type
Box
Panel Size
2x4
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Satco's 40 watt, 2' X 4' Troffer fixture provides broad, even light distribution in all commercial applications. Illuminate your office or work space with this energy saving, maintenance free, LED fixture. With an acrylic prismatic lens and whi
Safety Listing
cULus - Certified
SDS class
LED_Fixture
Short Description
2FT X 4FT LED TROFFER 40W
Temperature (CCT)
5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
13.20%
Wattage Selectable
No
Weight Lb.
18.33
Finish
