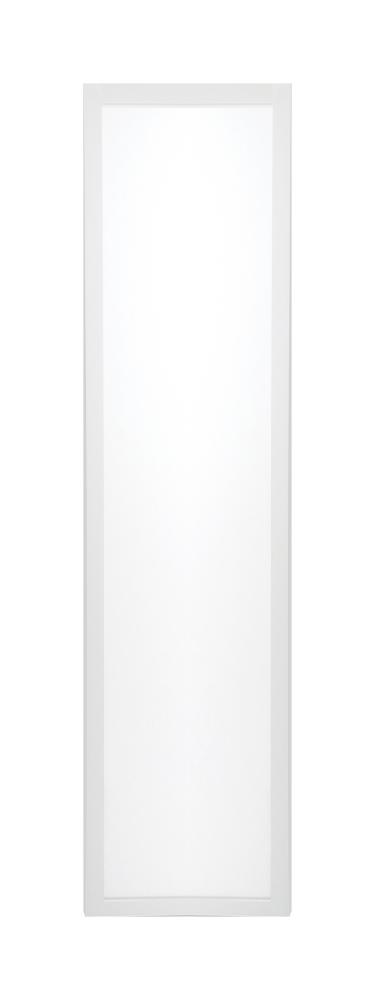

LED Backlit Flat Panel; 40 Watt; 1 Foot x 4 Foot; CCT Selectable ; 100-347 Volt
Image may not reflect selected features
LED Backlit Flat Panel; 40 Watt; 1 Foot x 4 Foot; CCT Selectable ; 100-347 Volt (A36EU)
LED Backlit Flat Panel; 40 Watt; 1 ft. x 4 ft.; CCT Selectable ; 100-347 Volt
Product Specification
Item #
A36EU
Dimensions
Height: 1.50"
Width: 11.84"
Additional product details
Internal #
A36EU
Category
Specialty Items
Subcategory
Lighting Accessories
Finish
White
Style
Traditional
Option
LED , Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Flat Panel
Sub Category
Backlit
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Dimmable
Yes-Dimmable
Each Height
13.39
Each Length
49.02
Each Width
2.56
Length
47.72
Lumens
4400L-4600L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Wire Length
3.54
Air Tight
No
Amps
0.400-0.115A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
120
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
China
CRI
80+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Standard
DLC Primary Use
1x4 Luminaires for Ambient Lighting of Interior Commercial Spaces
Each Cube
0.9724
Each Quantity
1
Efficacy
110.00/112.50/115.00 LPW
FCC Compliant
Yes
Feature 1
ColorQuick Technology - CCT Selectable 35K/40K/50K
Feature 2
Length: 47.72 inches, Width: 11.84 inches, Height: 1.50 inches
Feature 3
0-10 volt dimming
Feature 4
Damp location rated for indoor use
Feature 5
50,000 average rated hours of use
Feature 6
White Finish
Feature 7
Universal input voltage - 100V-347V
Feature 8
Dimmable
Feature 9
5-year limited warranty
Finish Family
White
Fixture shape
Rectangle
Flicker Free
Yes
Has Emergency Battery
No
IC Rated
Yes
Incandescent Equivalent
200W
Indoor Outdoor
Indoor
IOT Enabled
No
IP Rating
IP20
JA8 Compliant
No
Lens Finish
Frost
Lens Material
Poly methyl methacrylate (PMMA)
Long Description
SATCO|NUVO's 65-583 LED-backlit panel with ColorQuick technology is a versatile lighting fixture. Through advanced manufacturing, even light distribution is achieved at an even greater cost savings. Satco's ColorQuick and PowerQuick technologies al
Material
Aluminum / Steel
Mounting Procedure
Ceiling
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-17C (+1.4F) to +45C (+113F)
Pack Type
Box
Panel Size
1x4
Photocell
No Photocell
Power Factor
0.9
Quantity In Pack
1
R9 Value
15
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's LED-backlit panel with ColorQuick technology is a versatile lighting fixture. Through advanced manufacturing, even light distribution is achieved at an even greater cost savings. Satco's ColorQuick and PowerQuick technologies allow for
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
1X4 LED BACKLIT FLAT PANEL
Temperature (CCT)
3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
20.40%
Wattage Selectable
No
Weight Lb.
4.98
Wire Gauge
14
Wire Temp Rating
80C (176F)
