LED Backlit Flat Panel; 2 ft. x 2 ft.; Wattage and CCT Selectable; 100-347 Volt; ColorQuick
Image may not reflect selected features
/vendors/81/large/65-581R1.jpg
additional image
additional image
additional image
additional image
additional image

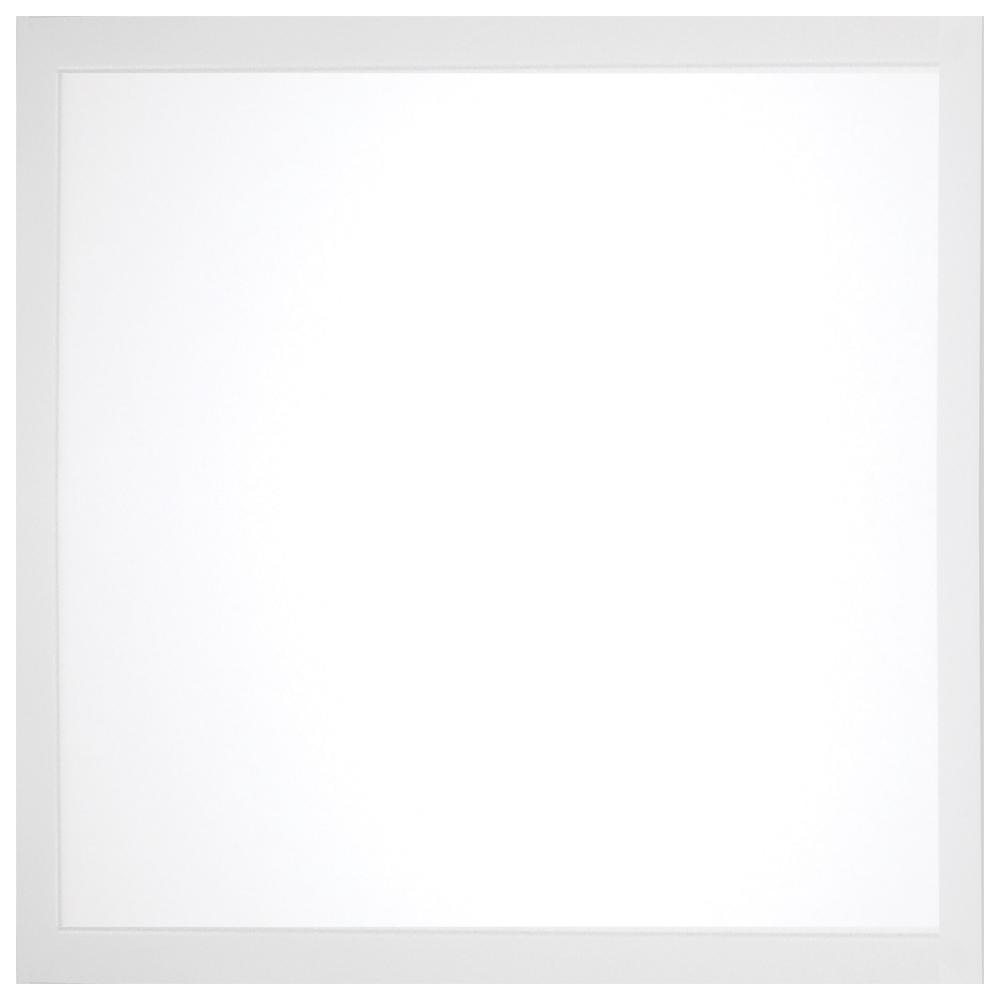

LED Backlit Flat Panel; 2 ft. x 2 ft.; Wattage and CCT Selectable; 100-347 Volt; ColorQuick (A6671)
LED Backlit Flat Panel; 2 ft. x 2 ft.; Wattage and CCT Selectable; 100-347 Volt; ColorQuick Technology; PowerQuick Technology
Product Specification
Item #
A6671
Dimensions
Height: 1.50"
Width: 23.75"
Additional product details
Internal #
A6671
Category
Specialty Items
Subcategory
Lighting Accessories
Option
LED , Prop 65
Lumens
1601-2600
Kelvin
4001-4500
Category
Flat Panel
Sub Category
Backlit
Style
Utility
Additional Info
Driver Specs - VDC38-48V; 430/620/810mA
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Dimmable
Yes-Dimmable
Each Height
25.2
Each Length
25
Each Width
2.56
Length
23.75
Lumens
2200L-4600L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Wire Length
3.54
Air Tight
No
Amps
0.200-0.058/0.300-0.086/0.400-0.115A
ANSI Base
Integrated
Beam Angle
120
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
80+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Standard
DLC Primary Use
2x2 Luminaires for Ambient Lighting of Interior Commercial Spaces
Each Cube
0.9333
Each Quantity
1
Efficacy
110.00/113.33/115.00 LPW
FCC Compliant
Yes
Feature 1
3500K/4000K/5000K CCT Selectable
Feature 2
20W/30W/40W Wattage Selectable
Feature 3
Higher 120-347 Voltage Range
Feature 4
Flicker Free, Even Light Distribution
Feature 5
0-10V Dimmable
Feature 6
50,000 average rated hours of use
Feature 7
DLC Listed
Finish Family
White
Fixture shape
Square
Flicker Free
Yes
IC Rated
Yes
Incandescent Equivalent
100W-150W
Indoor Outdoor
Indoor
IOT Enabled
No
IP Rating
IP20
JA8 Compliant
No
Lens Finish
Frost
Lens Material
Poly methyl methacrylate (PMMA)
Long Description
SATCO|NUVO's LED Backlit 2x2 Flat Panel 65-581R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at t
Material
Aluminum / Steel
Mounting Procedure
Ceiling
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-17C (+1.4F) to +45C (+113F)
Pack Type
Box
Panel Size
2x2
Photocell
No Photocell
Power Factor
0.9
Quantity In Pack
1
R9 Value
9
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configu
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
2X2 LED BACKLIT FLAT PANEL
Temperature (CCT)
3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
19%
Wattage Selectable
Yes
Weight Lb.
4.85
Wire Gauge
14
Wire Temp Rating
80C (176F)
