Dual Color LED Exit Sign with Battery Backup, Selectable Red or Green Letters, White Housing
Image may not reflect selected features
/vendors/104/large/NX-603D-LED.jpg
additional image

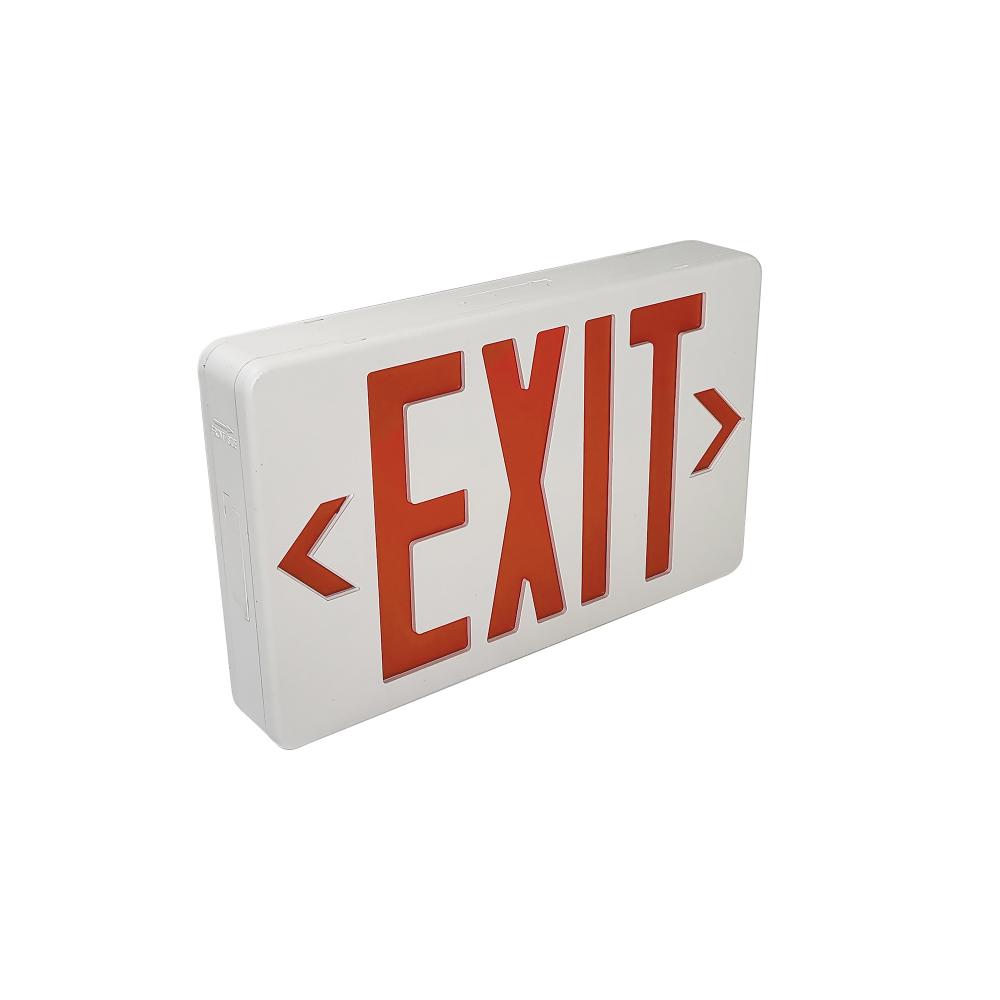

Dual Color LED Exit Sign with Battery Backup, Selectable Red or Green Letters, White Housing (1JA318)
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.

LED Source: Internal switch changes the color of LEDs from Green to Red

Colored Filters: Green and Red Filters are included with each sign

Face: Double Face and Blank Face included

Finish: White

Mounting: Wall, Side, or Ceiling Mounted. Mounting hardware and canopy included

Input Voltage: 120V/277V input

Battery: 3.6V 300mAh NiCad (nickel-cadmium)

Testing: The manual test switch and indicator light are located on the bottom of the sign

Accessories: NEG-60 (Wet Location Enclosure for Wall Mounting only)

Listings:
UL Listed for Damp Locations
NFPA
Certified to the energy efficiency standards of California Title 20
Product Specification
Item #
1JA318
Dimensions
Height: 2.13"
Width: 7.25"
Additional product details
Internal #
1JA318
Category
Utility
Subcategory
Exit Signs
Category
Exit / Emergency
Product Line
5010
Est. Shipping Wt.
4
Length
11.75
Ship Carton Height
2.375
Ship Carton Length
12.125
Ship Carton Width
7.5
Weight
2.15
Battery Quantity
1
Battery Type
Nickel- Cadmium
Contains Battery
Y
Country of Origin
CHN
DLC Listed
No
Master Box H
17
Master Box L
16
Master Box Qty
12
Master Box W
14
Master Box Wt.
30
Product Family
EXIT
Safety Listing
UL 924, NFPA, Title 20
Wattage
3W


Other Details:
  • 2.35
Finish
