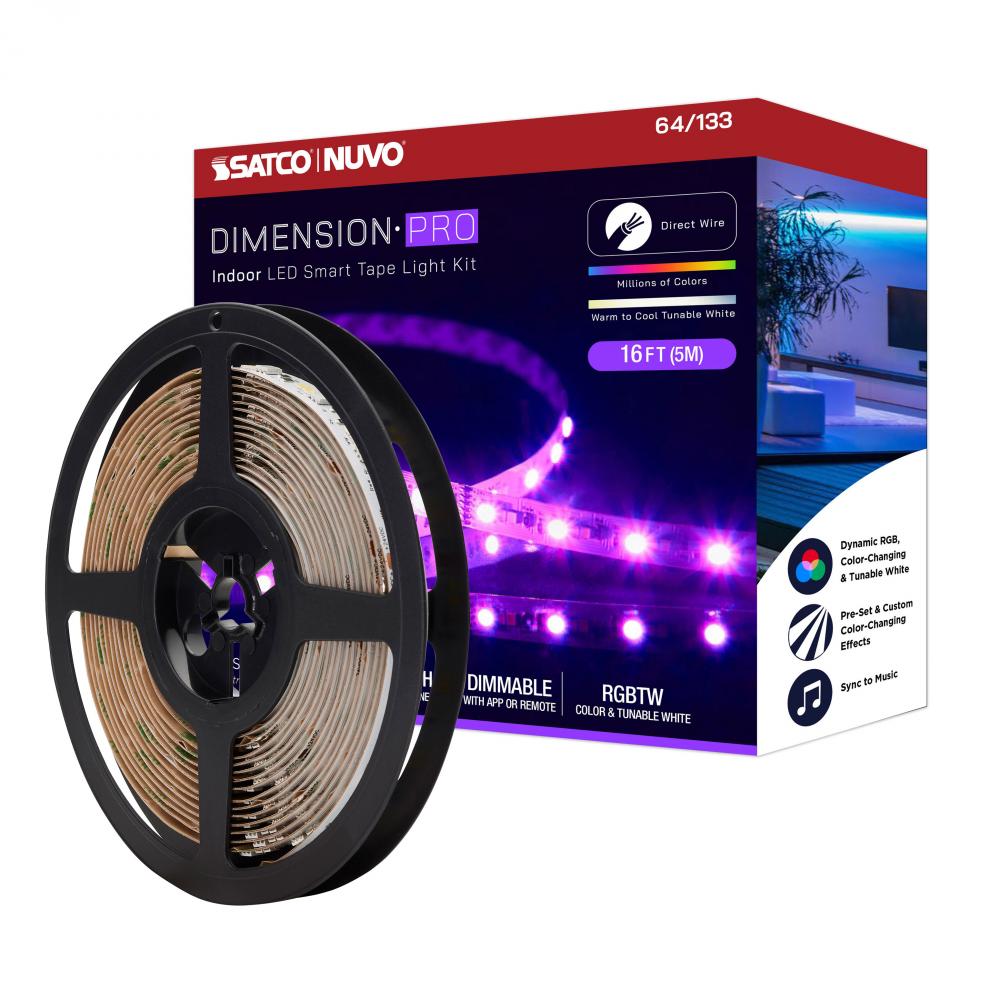

Dimension Pro; Tape light strip; 16 ft.; Hi-Output; RGB plus Tunable White; J-Box connection;

Image may not reflect selected features

Dimension Pro; Tape light strip; 16 ft.; Hi-Output; RGB plus Tunable White; J-Box connection; (A693G)

Dimension Pro; Tape light strip; 16 ft.; Hi-Output; RGB plus Tunable White; J-Box connection; Starfish IOT Capable; IR Remote Included

Product Specification

Item #

A693G

Dimensions

Width: 0.47"

Additional product details

Internal #

A693G

Category

Tape Light

Sub Category

LED Strip

Style

Utility

Additional Info

Driver Wattage is 30W; Driver Voltage is 120V-277V

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

RGB and Tunable White

Dimmable

Yes-Dimmable

Each Height

7.28

Each Length

7.28

Each Width

2.76

Length

196.85

Lumens

1920L

Tariff Code

9405.42.8440

Warranty

1 Year Limited - Fixtures

Amps

0.167A

CA Prop-65

Lead

CCT Selectable

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Communication Protocol

WiFi-2.4GHz

Connection

Direct Wired

Country Of Origin

China

CRI

80+

Dimmable Down To

100 to 20 percent

Dimmable Function

Only with Starfish App or Remote Control

Dimming Type

Smart-Starfish App or Remote Control only

Each Cube

0.0847

Each Quantity

Efficacy

96.00 LPW

FCC Compliant

Yes

Feature 1

Direct-wire Integrated LED Dynamic RGB, Color-Changing, and Tunable White featuring 20 watts with 1920 lumens, and 80 CRI

Feature 10

Easy installation with included instructions

Feature 2

Dimensions: 196.85 in L x .47 in W

Feature 3

Accessories included in kit: Plug-in Driver, Direct-wire Junction Box with 5.375-in Knockouts, IR Remote, Controller/Receiver, Single Reel

Feature 4

Tape light is cuttable with 4.92-in distance between cuts

Feature 5

Ideal for Commercial or Decorative Residential Applications

Feature 6

Physical Color: White

Feature 7

Dry location only and rated for 50,000 hours

Feature 8

1 Year Warranty

Feature 9

Visit Satco.com for optional accessories from a variety of channels with diffusers (64-150, 64-151, 64-152, 64-154), tape-to-tape connector (64-160), 6-in jumper wire (64-161), 90 degree connector (64-162), wire-to-tape connector (64-164), and 50 foot tape

Finish Family

White

Incandescent Equivalent

100W

Includes

Kit includes: Driver/Junction Box; Controller/Receiver; IR Remote; 1-5M Reel

Indoor Outdoor

Indoor

Installation Notes

1 reel of 16 feet (5M); 9 Foot (3M) plug in tape pre-installed on back for quick installation

IOT Enabled

Yes

IP Rating

IP20

JA8 Compliant

Long Description

Immerse yourself in a world of limitless possibilities with DIMENSION Pro, the smart app-controlled 16-ft direct-wire tape light that will redefine your lighting experience. Sync the lighting to your favorite soundtrack, create the perfect ambiance with mi

Material

Plastic

Mounting Procedure

Plug in Tape

Operating Frequency

50/60Hz

Operating Temp

-20C (-4F) to +40C (+104F)

Pack Type

Box

Pairing Technology

Bluetooth;WiFi

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Immerse yourself in a world of limitless possibilities with DIMENSION Pro 64-133, the smart app-controlled 16-ft direct-wire tape light that will redefine your lighting experience. Sync the lighting to your favorite soundtrack, create the perfect ambiance

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

TAPE/RGBTW-HO/IP20/JBOX/SF/16'

Software Supported

Tuya/Starfish APP

Specification Notes

Cuttable: Yes; Distance between cuts: 4.92" (125 mm); High Brightness; Sync to Music

Temperature (CCT)

2700K

Title 20 Compliant

Title 24 Compliant

Voice Assistants Supported

Alexa;Google Home;Siri;SmartThings

Wattage Selectable

Weight Lb.

3.41

Finish

Additional options that would change other selections
