CCT and Wattage Adjustable LED Wall Pack; Integrated Bypassable Photocell; CCT Selectable from 3000,

Image may not reflect selected features

CCT and Wattage Adjustable LED Wall Pack; Integrated Bypassable Photocell; CCT Selectable from 3000, (A36HN)

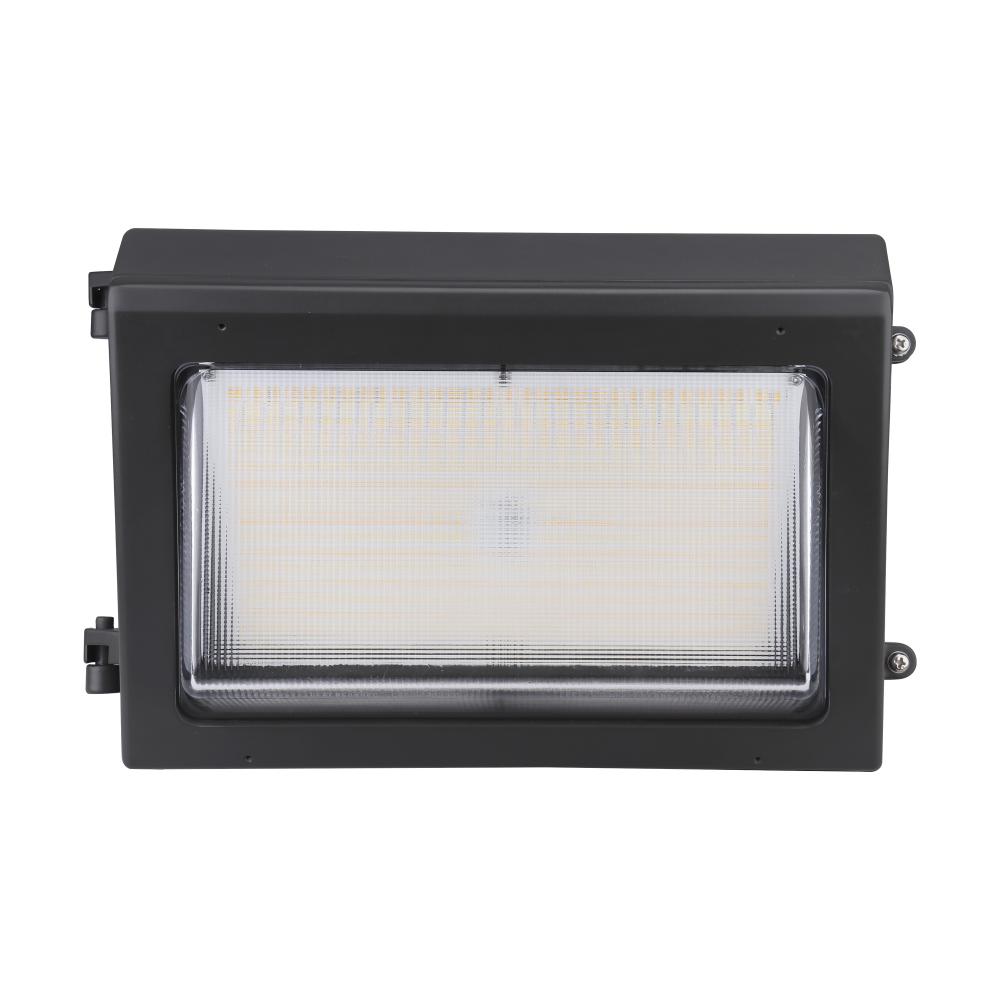

CCT and Wattage Adjustable LED Wall Pack; Integrated Bypassable Photocell; CCT Selectable from 3000, 4000 or 5000K; Wattage Selectable from 80, 100, or 120 Watt; 120-347 Volt

Product Specification

Item #

A36HN

Dimensions

Height: 9.35"

Width: 14.36"

Additional product details

Internal #

A36HN

Category

Wall Pack

Sub Category

Standard

Style

Traditional

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm to Cool White

Dimmable

Yes-Dimmable

Each Height

9.84

Each Length

15.63

Each Width

11.69

Lumens

11360L-17400L

Tariff Code

9405.42.6000

Warranty

5 Year Limited - Fixtures

Amps

0.667-0.231/0.833-0.288/1.000-0.346A

ANSI Base

Integrated

BAA Compliant

Beam Angle

110

B_U_G_Rating

B2-U4-G5

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Hardwire

Country Of Origin

Vietnam

CRI

80+

Dimmable Down To

100 to 20 percent

Dimmable Function

0-10V Dimming Only

DLC Classification

Premium

DLC Primary Use

Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires

Each Cube

1.0405

Each Quantity

Efficacy

142.00/143.80/145.00 LPW

FCC Compliant

Yes

Feature 1

Wattage Selectable 80W/100W/120W

Feature 2

CCT Selectable 3000K/4000K/5000K

Feature 3

Integrated by-passable photocell

Feature 4

4KV Surge Protection

Feature 5

50,000 Hours

Feature 6

DLC Premium

Feature 7

5 Year Warranty

Finish Family

Bronze

HID Equiv

200W-400W

Incandescent Equivalent

600W-1000W

Indoor Outdoor

Indoor;Outdoor

IOT Enabled

IP Rating

IP65

JA8 Compliant

Lens Material

Glass

Long Description

Introducing 65-758, SATCO|NUVO's new CCT and Wattage selectable wall pack with integrated bypassable photocell. This cULus certified wall pack is offered in a traditional style with 80W/100W/120W wattage configurations, CCT selectable temperatures of 3

Material

Die-Cast Aluminum

Mounting Procedure

Wall

Operating Frequency

50/60Hz

Operating Temp

-40C (-40F) to +50C (+122F)

Pack Type

Box

Photocell

Yes - Bypassable

Power Factor

>0.9

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Introducing SATCO|NUVO's new CCT and Wattage selectable wall packs with integrated by-passable photocells. These cULus certified wall packs are offered in a traditional style and semi-cutoff style in two wattage configurations, 29W/40W/60W and 80W/100W

Safety Listing

cULus - Listed

SDS class

LED_Fixture

Short Description

LED WALL PACK CCT & WATT ADJ

Temperature (CCT)

3000K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Total Harmonic Distortion

15%

Wattage Selectable

Yes

Weight Lb.

9.5

Finish

Additional options that would change other selections
