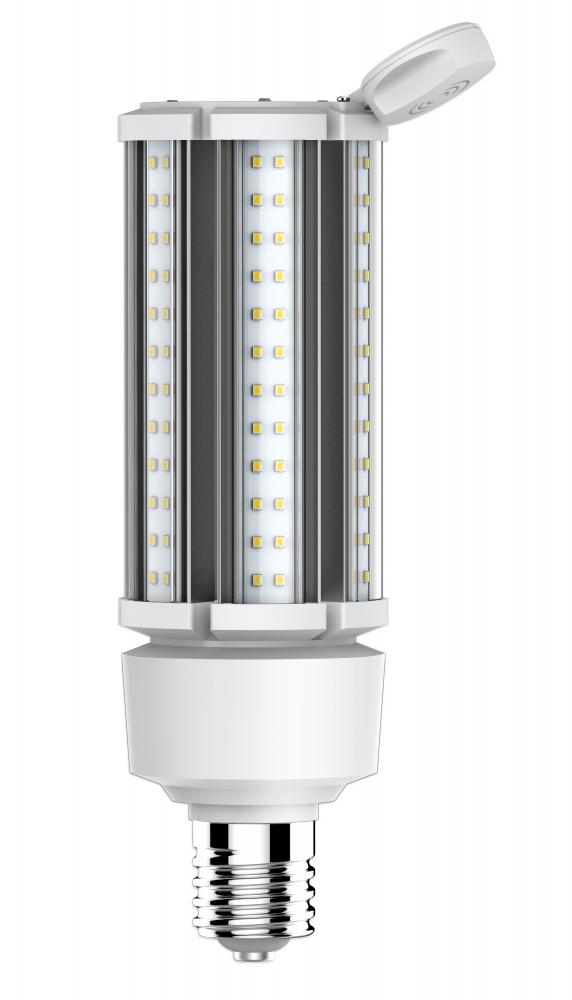

63 Watt LED HID Replacement; 5000K; Mogul base; Type B Ballast Bypass;100-277 Volt (WMEG0)

63 Watt LED HID Replacement; 5000K; Mogul base; Type B Ballast Bypass;100-277 Volt

Product Specification

Item #

WMEG0

Dimensions

Width: 3.38"

Additional product details

Internal #

WMEG0

Category

LED

Sub-Category

HID Replacements

Volts

100V-277V

Bulb Dimmable

Non-Dimmable

Bulb Hours

50000

Bulb Kelvin

5000K

Bulb Shape

Corncob

Diameter

3.38

EA Length

3.66

Harmonized Codes

8539.52.0091

Length

10.88

Lumens

7875L

Shap Carton Width

3.66

Ship Carton Height

12.24

Ship Weight

2.07

Warranty

5 Year Limited - Hi-Pro

Additional Info

Built-in motion sensor - Detection area 32-feet; 30 second turn off

BAA Compliant

Ballast Bypass Direct

Ballast Bypass

Ballasting Requirements

Ballast Bypass- Direct wire only 100V-277V

Beam Spread

300

Bulb ANSI Base

E39

Bulb Base

Mogul

Bulb Finish

Clear

Burning Position

Universal

Carton Cubic Feet

0.0949

Cartons Per Unit

CCT Selectable

CEC

Exempt - Base Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Color Temprature

Natural Light

Country Of Origin

China

CRI

80+

DLC Approved

Efficacy

125.00 LPW

Enclosed Fixture Use

Yes

Enclosure Rating

Enclosed Rated Lamp

FCC Compliant

Yes

HID Equivalent

250W

Housing Color

White

Incandescent Equivalent

300W

Installation Notes

Not for use in vapor tight fixtures.

IP Rating

IP42

JA8 Compliant

Lamp Ballast Type A/B/C

Type B

Lamp Filament

LED

Lens

Yes

Lens Finish

Clear

Location Rating

Damp

Minimum Compartment Size

Length: 11 in. Width: 8 in. Depth: 8 in.

Operating Temp

-30C (-22F) to +60C (+140F)

Pack Type

Box

Photocell

Has Motion Sensor

Power Factor

>0.9

Quantity In Pack

RoHS Compliant

Yes

SDS class

LED_Lamp

Sensor Detection Range

10M (32.8')

Sensor Field of View

6M (19.69')

Sensor Mounting Height

2-10M (2.56' - 32.8')

Sensor Occupancy or Vacancy

Occupancy

Sensor Operating Temperature

-40C (-40F) to +45C (+113F)

Sensor Operation

3-way

Sensor Switch Type

0-10V Dimming

Sensor Time Delay

3s;30s

Short Description

63W/LED/HID/5K/MS/100-277V

Surge Protection

Built-in surge protection

Technology

LED

Title 20 Compliant

Title 24 Compliant

Wattage Selectable

Watts

63W

Finish Family

Additional options that would change other selections

Call for Price

Qty:

Add To Quote

Add To Estimate

Add To Wishlist

Save To Compare

Availability:

Manufacturer has 422 items available.
This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
