5-1/2" Intrinsic Collection Surface Mount LED in White

Image may not reflect selected features

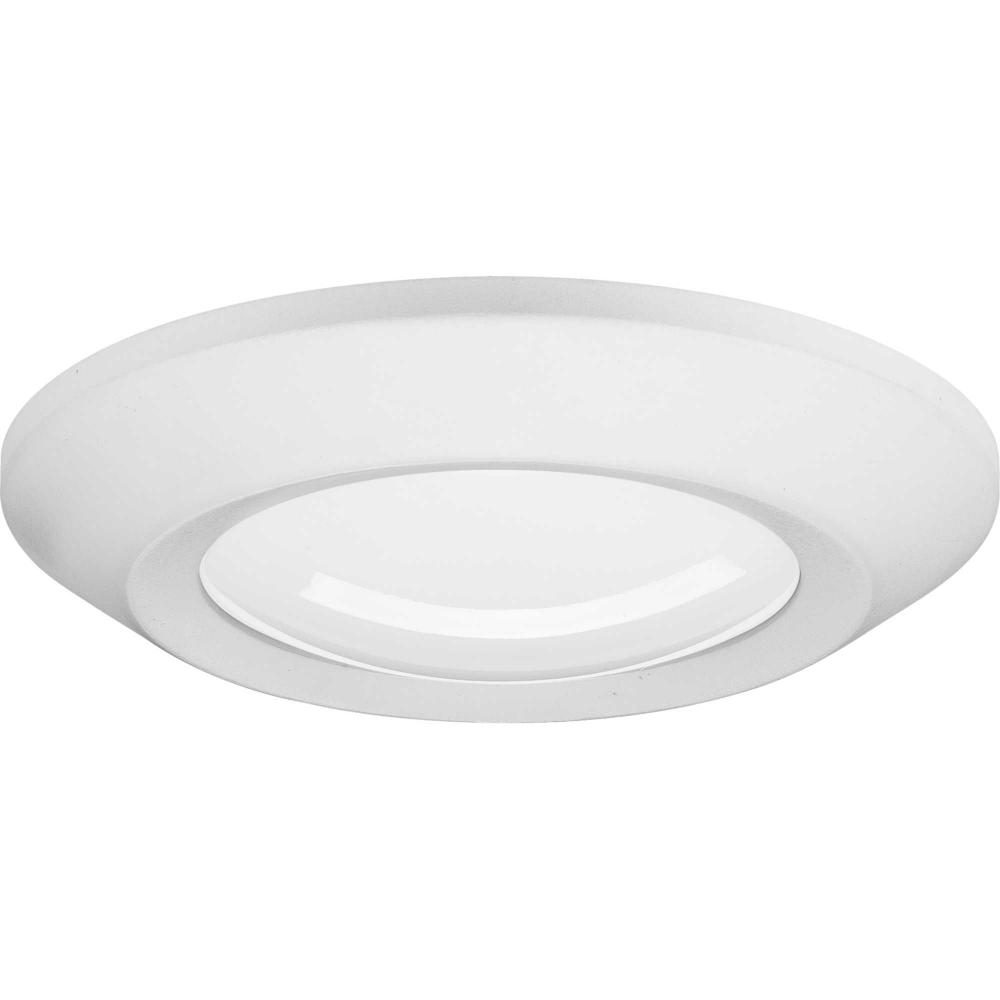

/vendors/149/large/prog_p810012_028-30_hero_prodimage.jpg

additional image

additional image

additional image

additional image

additional image

additional image

additional image

additional image

5-1/2" Intrinsic Collection Surface Mount LED in White (AQ5X6)

Elevate your design vision with just the flip of a switch with our Intrinsic Surface Mount LED Collection. The simple, classic design of these light fixtures can easily be installed into a variety of style applications in both residential and commercial settings. We offer two different sizes of surface mounts, both coated in a crisp white finish, to meet your unique design needs. Each smooth trim ring surrounds an integrated LED light fixture ready to emit general ambient lighting wherever it calls home in your design plan.

Downloads

Click Here to View Spec Sheet

Click Here to View Installation Sheet

Click Here to View Warranty

Product Specification

Item #

AQ5X6

Dimensions

Height: 1.13"

Width: 5.50"

Length: 5.50"

Additional product details

Internal #

AQ5X6

Category

Exterior , Flush Mounts

Subcategory

Exterior Flush mounts , Outdoor Flush Mounts

Finish

White

Style

Transitional

Option

Energy Efficient , Energy Star , Title 24 , Wet Rated , LED , Title 20

Voltage

100-120

Lumens

450-800

Mount Type

Flush Mount

Kelvin

2501-3000

Location Rating

Wet Rated

Category

Close-to-Ceiling

Finish

Satin White

Option

Energy Star , Title 20 , Title 24 , Wet Rated

Family

Intrinsic

Glass

Diffused

Voltage

120

Number of Bulbs

1 Bulbs

Bulb Hours

35000

Bulb Type

Integrated LED

Introduction Date

01/01/2020

Kelvin

3000

Length

5.50

Lumens / Light Output

650

Material

Steel

Ship Carton Height

5.87

Ship Carton Length

5.75

Ship Carton Width

1.81

Ship Weight

0.68

Special Features

Integrated AC LED technology 3000K, 90 CRI, 650 lumens (delivered);Diffused polycarbonate lens controls direct glare from the LEDs;Simple snap in installation for J-Box with 1/2" minimum depth;Lumen output and distribution comparable to a 65W incandesc

Vendor Ship Method

Non UPS Shippable False

Warranty

5 year

Weight

0.60

Wire Included

6 in

Americans with Disabilities Act

No

Bulb Base

Integrated

Bulb CRI

90 CRI

Bulb Included

Yes

Can be Mounted Up or Down

No

Certified Listed Location

Wet Location Listed

Construction Material Main Part

Construction

Country of Origin

CN

Dark Sky

No

Design Series

No

Dimming Compatability

Eaton_AAL06;Eaton_SAL06P;Leviton_IPI06-1LZ;Leviton_SureSlide 6672;Leviton_SureSlide 6674;Lutron_Nova T NTELV-300;Lutron_Diva DVELV-300P;Lutron_Maestro MACL-153M

Dimming Protocol

Triac/Forward Phase;ELV/Reverse Phase

Energy Efficient

No

Energy Star

Yes

Finish Type

Painted

Frequency Rating

60 Hz

Glass Shape

Lens

Grounded Convenience Outlet included

No

JA8

2019

Lamp Type Actual

LED

Lamp Type Basic

Solid State

Lamp Wattage

11.5

Lens Shade Material

Polycarbonate

Lumens per Watt

60.00

Mount location

Wall Or Ceiling

MTO

No

Operating Temperature Celcius Max

30 °C

Prop 65

Yes

Safety Rating

cCSAus

Starting Temperature Minimum

-30 °C

Sub Brand

Progress LED

Title 20

Yes

Title 24

Yes

Weight of Fixture Exceeds NEC Limits

No

Included Items

Bulbs: (1) x 11.5 Watt Integrated LED
