40 Watt; 8 Foot; T8 LED; Single pin base; 6500K; 50000 Average rated hours; 5500 Lumens; Type B;

Image may not reflect selected features

40 Watt; 8 Foot; T8 LED; Single pin base; 6500K; 50000 Average rated hours; 5500 Lumens; Type B; (LNMPQ)

40 Watt; 8 Foot; T8 LED; Single pin base; 6500K; 50000 Average rated hours; 5500 Lumens; Type B; Ballast Bypass; Double Ended Wiring; DLC 5.1

Product Specification

Item #

LNMPQ

Dimensions

Width: 1.00"

Additional product details

Internal #

LNMPQ

Category

LED

Sub-Category

LED T8

Volts

120V-277V

Bulb Hours

50000

Bulb Kelvin

6500K

Bulb Shape

Diameter

EA Length

Harmonized Codes

8539.52.0051

Length

Lumens

5500L

Shap Carton Width

Ship Carton Height

Ship Weight

0.88

Warranty

5 Year Limited - T8 LED Bulbs - Ballast Bypass

Weight

0.88

Additional Info

Suitable for Emergency Lighting only with Satco EM Driver #S8002

BAA Compliant

Ballast Bypass Direct

Ballast Bypass

Ballasting Requirements

Ballast Bypass

Beam Spread

210

Bulb ANSI Base

Fa8

Bulb Base

Single Pin

Bulb Finish

White

Burning Position

Universal

Carton Cubic Feet

0.0544

Cartons Per Unit

CCT Selectable

CEC

Exempt - Base Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Color Temprature

Daylight

Country Of Origin

China

CRI

DLC Approved

Yes

DLC Classification

Standard

DLC ID

PLXALFHWUTHG

DLC Primary Use

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy

137.50 LPW

Enclosed Fixture Use

Yes

Enclosure Rating

Enclosed Rated Lamp

FCC Compliant

Yes

Feature 1

MOL: 94.00 inches, MOD: 1.00 inch

Feature 2

Superior 82 CRI light quality, 5500 lumens, 6500K CCT with a 210 beam spread

Feature 3

Rated for enclosed fixtures

Feature 4

Damp rated, for indoor use only

Feature 5

40 watt LED replaces 59 watt fluorescent

Feature 6

White finished linear glass lamp

Feature 7

DLC Certified and qualifies for rebates where available

Feature 8

5 Year Limited Warranty

Flourescent Equivalent

59W

Incandescent Equivalent

125W

Indoor Outdoor

Indoor

Installation Notes

Not for use in vapor tight fixtures.

IOT Enabled

JA8 Compliant

Lamp Ballast Type A/B/C

Type B

Lamp End Type

Double Ended

Lamp Filament

LED

Lens Finish

White

Location Rating

Damp

Long Description

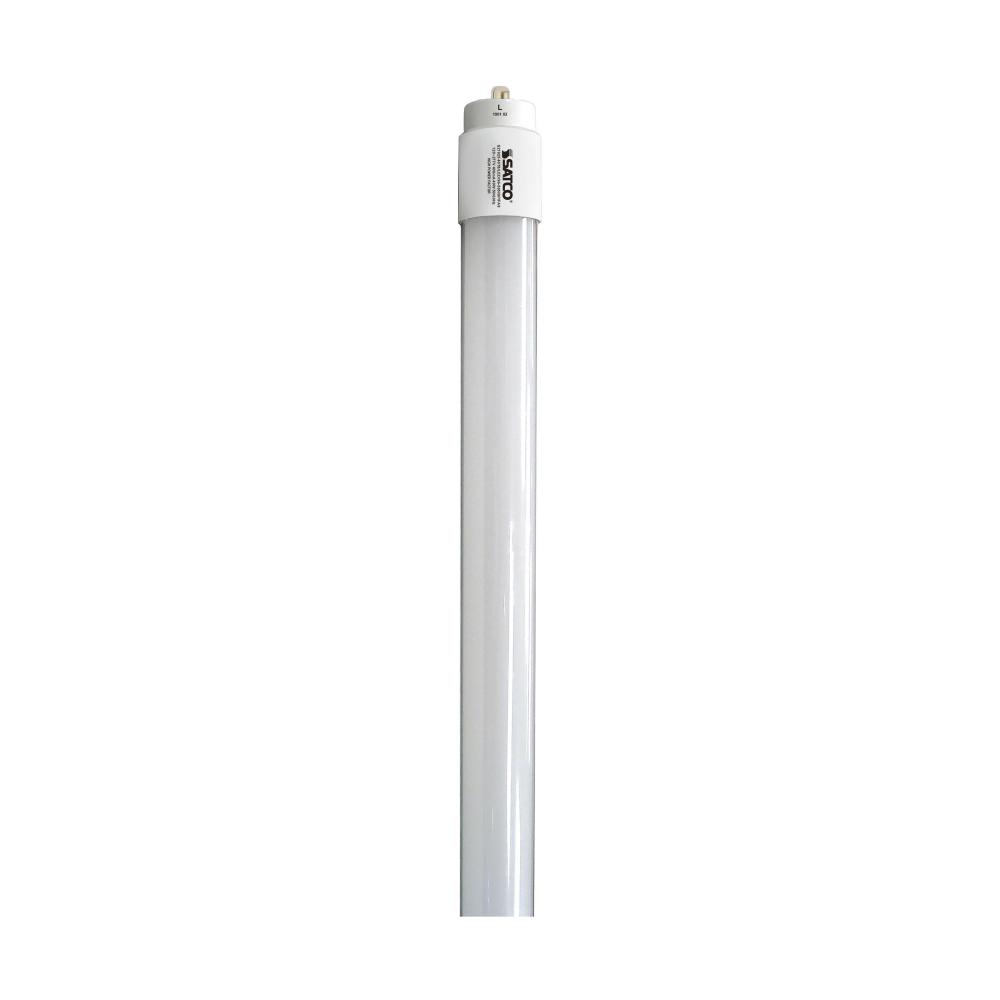

SATCO|NUVO's S21925 40 watt T8 8 foot LED Type B single pin ballast bypass linear replacement bulb with emergency lighting and damp rating, are suitable in a number of commercial retrofit applications. The white bulb is PET coated for shatterproof prot

Material

Glass

Minimum Compartment Size

Length: 96.063 in. Width: 10.630 in. Heigth: 2.756 in.

Nominal Length

NSF Approved

Yes

Operating Frequency

50/60Hz

Operating Temp

-20C (-4F) to +45C (+113F)

Order In Multiples Of

Pack Type

Sleeve

Power Factor

0.9

Quantity In Pack

R9 Value

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO's 40 watt T8 8 foot LED Type B single pin ballast bypass linear replacement bulb with emergency lighting and damp rating, are suitable in a number of commercial retrofit applications. The white bulb is PET coated for shatterproof protection.

SDS class

LED_Lamp

Shatter Proof Text

PET Coated

Short Description

40T8/LED/96-865/BP/FA8

Style

Utility

Technology

LED

Title 20 Compliant

Title 24 Compliant

Total Harmonic Distortion

20%

Wattage Selectable

Watts

40W

Finish Family
