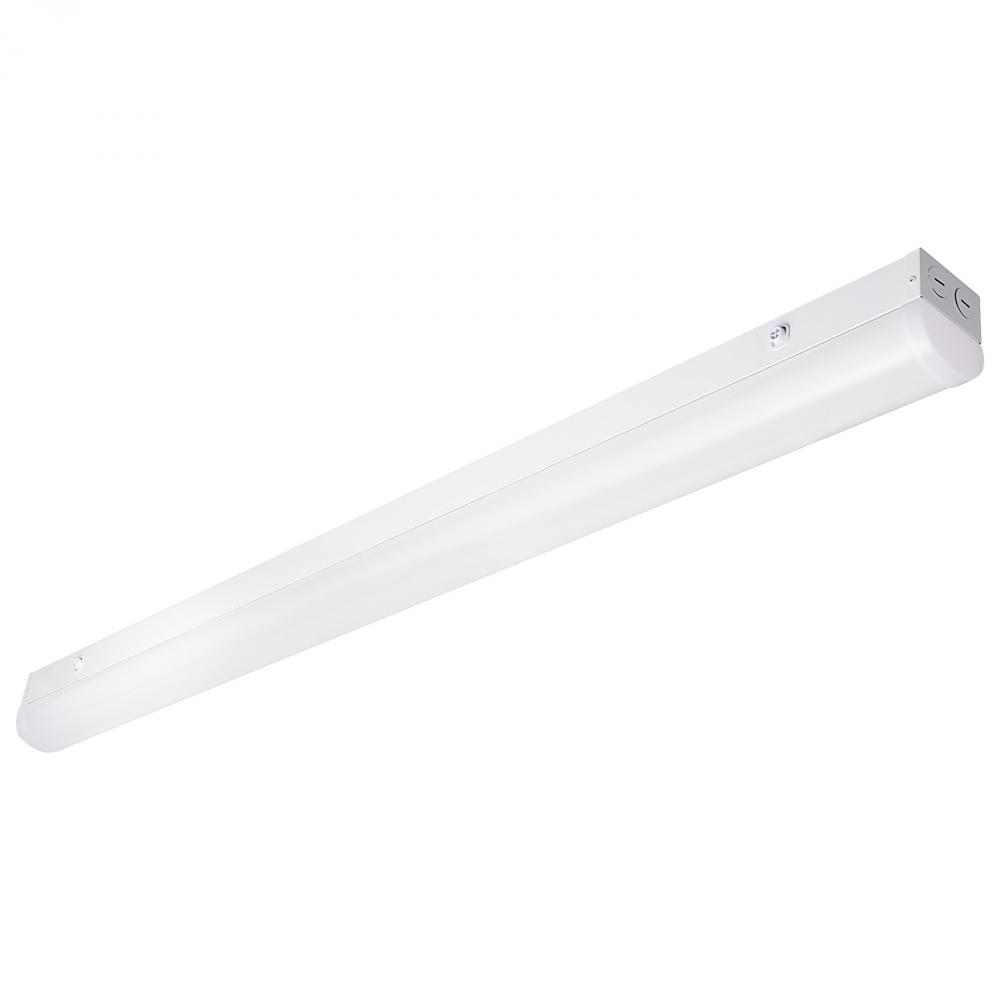

4 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish; Microwave Sensor

Image may not reflect selected features

4 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish; Microwave Sensor (A95WV)

4 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish; Microwave Sensor

Product Specification

Item #

A95WV

Dimensions

Height: 3.27"

Width: 2.95"

Additional product details

Internal #

A95WV

Category

Linear Strip

Sub Category

Strip Fixture

Style

Utility

Additional Info

Other DLC Listings: S-5A4OGI, Standard, Direct Linear Ambient Luminaires; S-GB3EIK, Standard, Low-Bay Luminaires for Commercial and Industrial Buildings.

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Neutral White to Daylight

Dimmable

Yes-Dimmable

Each Height

5.38

Each Length

50.08

Each Width

5.13

Length

Lumens

3900L-6750L

Tariff Code

9405.11.6010

Warranty

5 Year Limited - Fixtures

Amps

0.250-0.108/0.333-0.144/0.417-0.181A

ANSI Base

Integrated

BAA Compliant

Beam Angle

120

B_U_G_Rating

B2-U4-G2

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Country Of Origin

Vietnam

CRI

Dimmable Down To

100 to 10 percent

Dimmable Function

0-10V Dimming Only

DLC Classification

Premium; Standard; Standard

DLC Primary Use

Stairwell and Passageway Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings; Direct Linear Ambient Luminaires

Each Cube

0.7999000000000001

Each Quantity

Efficacy

130.00/133.13/135.00 LPW

FCC Compliant

Yes

Feature 1

CCT & Wattage Selectable

Feature 2

Flicker Free Driver

Feature 3

0-10V Dimmable

Feature 4

Multiple Mounting Options

Feature 5

DLC Premium

Feature 6

Integrated Microwave Sensor

Feature 7

Ultra Slim Design

Finish Family

White

Flicker Free

Yes

Has Driver

Yes

HID Equiv

100W-150W

Incandescent Equivalent

150W-175W

Indoor Outdoor

Indoor

IOT Enabled

IP Rating

IP20

JA8 Compliant

Lens Finish

White

Lens Material

Polycarbonate (PC)

Long Description

The SATCO|NUVO 65-1701 LED 4-foot Linear Strip Fixture features an integrated microwave sensor for added energy efficiency and savings. With 3-CCT selectable options - 3500K, 4000K, 5000K and 3-Wattage options - 30W, 40W, 50W - the user can tailor the ligh

Material

Steel

Mounting Diameter

4.75

Mounting Procedure

Ceiling/Wall

Operating Frequency

50/60Hz

Operating Temp

-20C (-4F) to +60C (+140F)

Pack Type

Box

Photocell

Bi-Level Microwave Sensor

Power Factor

0.9

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes. These fixtures provide flexibility with 3-CCT selectable options - 3500K, 4000K, and 5000K - allowing the user to tailor the lighting to their specific needs and preferences. Select mod

Safety Listing

cULus - Listed

SDS class

LED_Fixture

Sensor Type

Microwave

Short Description

4' LINEAR STRIP W/SENSOR

Temperature (CCT)

3500K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Total Harmonic Distortion

10.71%

Wattage Selectable

Yes

Weight Lb.

3.56

Finish

Additional options that would change other selections
