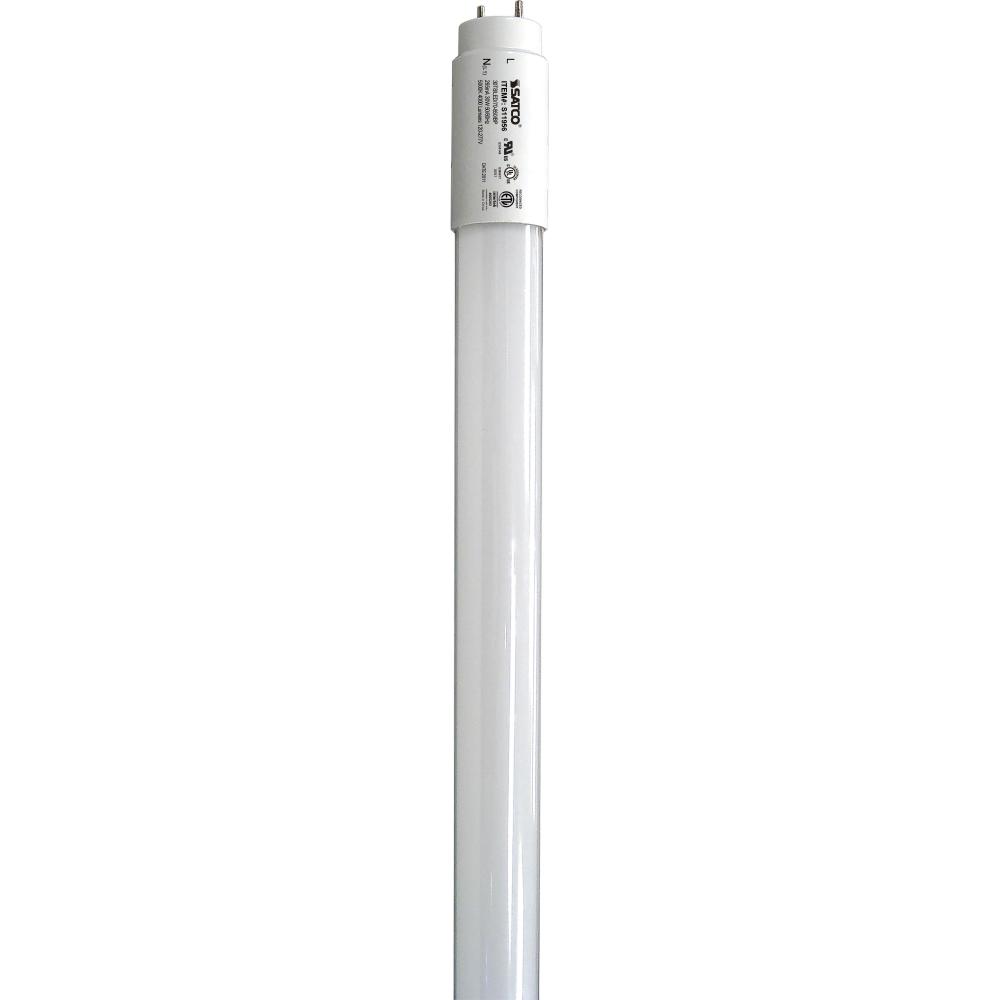

30 Watt T8 LED Type B Ballast Bypass; G13 Bi-Pin Base; 80 CRI; 5000K
Image may not reflect selected features
/vendors/27/large/S11956.jpg
additional image
30 Watt T8 LED Type B Ballast Bypass; G13 Bi-Pin Base; 80 CRI; 5000K (LNFVW)
30 Watt T8 LED Type B Ballast Bypass; G13 Bi-Pin Base; 80 CRI; 5000K
Product Specification
Item #
LNFVW
Dimensions
Width: 1.00"
Additional product details
Internal #
LNFVW
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Style
Traditional
Lumens
3300+
Kelvin
4501-5000
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
5000K
Bulb Shape
T8
Diameter
1
EA Length
71.90000000000001
Harmonized Codes
8539.52.0051
Length
70
Lumens
4000L
Shap Carton Width
1.1
Ship Carton Height
1.1
Ship Weight
0.5
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight
0.5
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
160
Bulb ANSI Base
G13
Bulb Base
Medium Bi Pin
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0503
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Natural Light
Country Of Origin
China
CRI
83
Dark Sky Rated
No
DLC Approved
No
Efficacy
133.33 LPW
Enclosed Fixture Use
Yes
FCC Compliant
Yes
Feature 1
MOL: 70.00 inches, MOD: 1.00 inch
Feature 2
Medium Bi Pin base
Feature 3
Frost Finish
Feature 4
5000K Natural White Light
Feature 5
4000 lumens
Feature 6
Enclosed Rated Lamp
Feature 7
Damp location rated for indoor use
Feature 8
FCC and RoHS Compliant
Feature 9
5-year limited warranty
Flourescent Equivalent
70W
Has Emergency Battery
No
Housing Color
White
Incandescent Equivalent
125W
Indoor Outdoor
Indoor
Installation Notes
Not for use in vapor tight fixtures.
IOT Enabled
No
IP Rating
IP20
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Single Ended
Lamp Filament
LED
Lens Finish
Frost
Lens Material
Glass
Location Rating
Damp
Long Description
Satco's S11956 30-watt, 70 inch, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and a medium bi pin base. This frosted bulb is versatile and delivers 50,000
Material
Glass
Nominal Length
70
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
10
Pack Type
Egg Crate
Photocell
No
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Satco's 30-watt, 70 inch, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and a medium bi pin base. This frosted bulb is versatile and delivers 50,000 hours
SDS class
LED_Lamp
Shatter Proof Text
PET Coated
Short Description
30T8/LED/70-850/BP
Style
Utility
Surge Protection
Built-in-surge protection - 0.5KV
Technology
LED
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
25%
Tube Guard Use
Yes
Wattage Selectable
No
Watts
30W
