25 Watt LED A23 Hi-Pro HID Replacement; 2700K; Mogul extended base; Type B Ballast Bypass; 120-277
Image may not reflect selected features

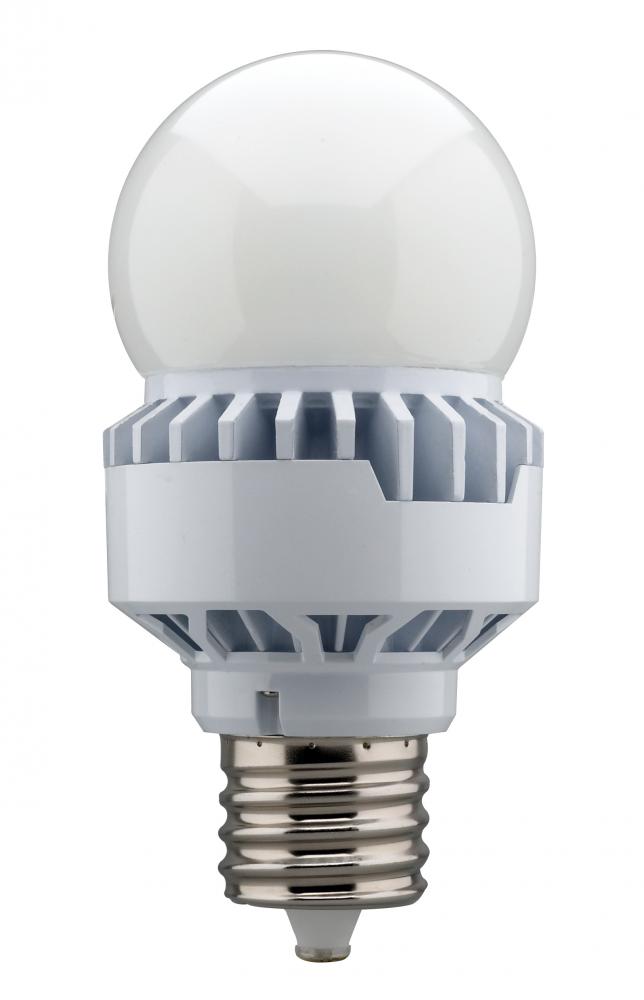

/vendors/27/large/S13104.jpg
additional image
25 Watt LED A23 Hi-Pro HID Replacement; 2700K; Mogul extended base; Type B Ballast Bypass; 120-277 (LNGWA)
25 Watt LED A23 Hi-Pro HID Replacement; 2700K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt
Product Specification
Item #
LNGWA
Dimensions
Width: 3.22"
Additional product details
Internal #
LNGWA
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Style
Traditional
Lumens
3001-3300
Kelvin
2501-3000
Wattage
25w
Category
LED
Sub-Category
HID Replacements
Volts
100V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
2700K
Bulb Shape
A23
Diameter
3.22
EA Length
3.5
Harmonized Codes
8539.52.0010
Length
6.66
Lumens
3275L
Shap Carton Width
3.5
Ship Carton Height
7.48
Ship Weight
1
Warranty
5 Year Limited - Hi-Pro
Weight
1.1
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
280
Bulb ANSI Base
EX39
Bulb Base
Mogul Extended
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.053
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm White
Country Of Origin
China
CRI
80
DLC Approved
No
Efficacy
131.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
MOL: 6.66 inches, MOD: 3.22 inches
Feature 2
Superior 80 CRI light quality, 3275 lumens, 2700K warm white light, with a 280 degree beam spread
Feature 3
Rated for enclosed fixtures
Feature 4
Damp location rated
Feature 5
25 watt LED replaces 200W incandescent
Feature 6
Frost finished bulb with white plastic housing
Feature 7
5 Year Limited Warranty
HID Equivalent
100W
Housing Color
White
Incandescent Equivalent
200W
Installation Notes
Not for use in vapor tight fixtures.
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens
Yes
Lens Finish
Frost
Lens Material
Plastic (PS)
Location Rating
Damp
Long Description
Satco's S13104 25 watt A23 Hi-Pro 3275 lumen LED Type B ballast bypass HID replacement lamp is suitable for damp locations and enclosed fixtures. The frost bulb features a mogul extended base and a 280 degree beam spread. With a temperature of 2700 kel
Material
Plastic
Minimum Compartment Size
Diameter: 6 in. Height: 8.5 in.
Operating Frequency
50/60Hz
Operating Temp
-25C (-13F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
10
RoHS Compliant
Yes
Romance Copy
Satco's 25 watt A23 Hi-Pro 3275 lumen LED Type B ballast bypass HID replacement lamp is suitable for damp locations and enclosed fixtures. The frost bulb features a mogul extended base and a 280 degree beam spread. With a temperature of 2700 kelvins, t
SDS class
LED_Lamp
Short Description
25WA23/LED/27K/100-277V/EX39
Style
Contemporary
Technology
LED
Title 20 Compliant
No
Title 24 Compliant
No
Wattage Selectable
No
Watts
25W
