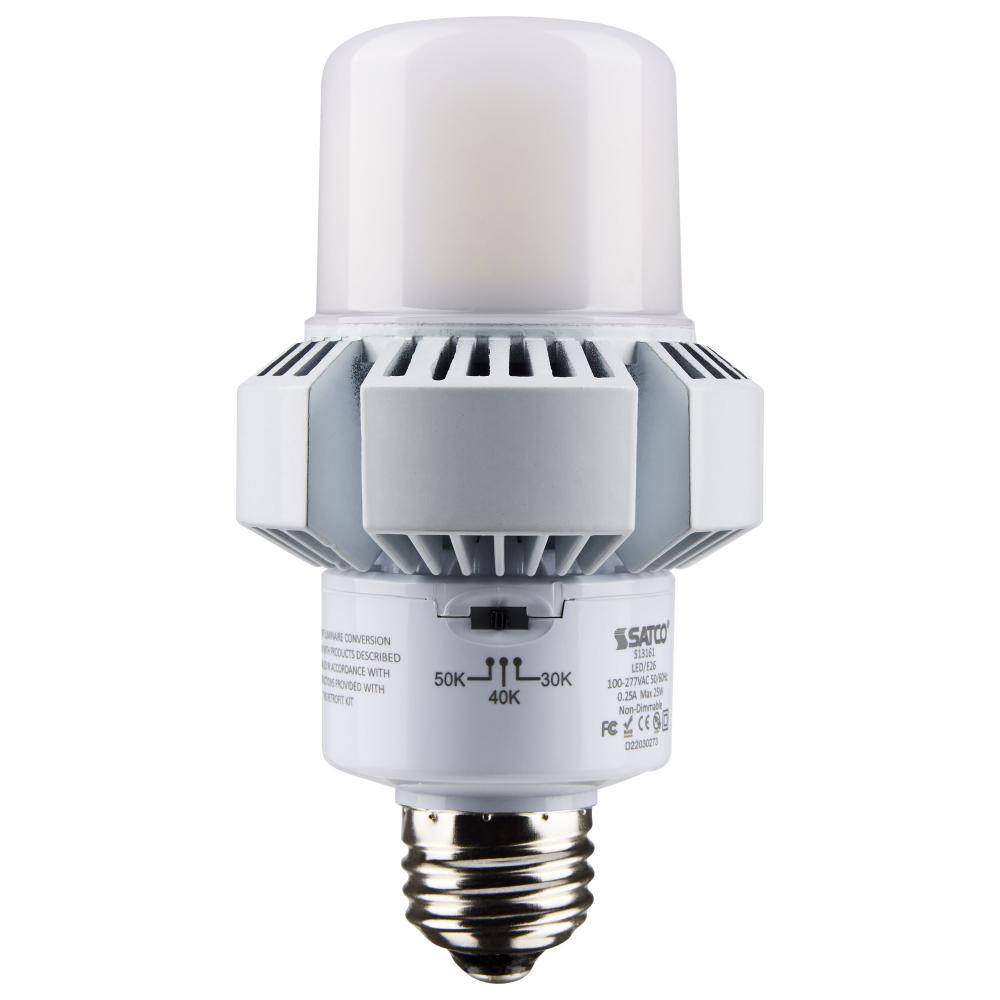

25 Watt; A-Plus 23; LED; CCT Selectable 3K/4K/5K; Medium base; Type B; Ballast Bypass; 100-277 Volt;

Image may not reflect selected features

25 Watt; A-Plus 23; LED; CCT Selectable 3K/4K/5K; Medium base; Type B; Ballast Bypass; 100-277 Volt; (LNHTQ)

25 Watt; A-Plus 23; LED; CCT Selectable 3K/4K/5K; Medium base; Type B; Ballast Bypass; 100-277 Volt; ColorQuick Technology

Product Specification

Item #

LNHTQ

Dimensions

Width: 2.83"

Additional product details

Internal #

LNHTQ

Category

LED

Sub-Category

HID Replacements

Volts

100V-277V

Bulb Dimmable

Non-Dimmable

Bulb Hours

50000

Bulb Kelvin

3000K/4000K/5000K

Bulb Shape

AP23

Diameter

2.83

EA Length

2.99

Harmonized Codes

8539.52.0010

Length

5.12

Lumens

3000L/3375L/3250L

Shap Carton Width

2.99

Ship Carton Height

5.7

Ship Weight

0.63

Warranty

5 Year Limited - Hi-Pro

Weight

0.49

BAA Compliant

Ballast Bypass Direct

Ballast Bypass

Ballasting Requirements

Ballast Bypass

Beam Spread

280

Bulb ANSI Base

E26

Bulb Base

Medium

Bulb Finish

White

Burning Position

Universal

Carton Cubic Feet

0.0295

Cartons Per Unit

CCT Selectable

Yes

CEC

Exempt - >2600 Lumens

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Color Temprature

Warm to Cool White

Country Of Origin

China

CRI

DLC Approved

Efficacy

120.00/135.00/130.00 LPW

Enclosed Fixture Use

Yes

Enclosure Rating

Enclosed Rated Lamp

FCC Compliant

Yes

Feature 1

Advanced heat sink design ensures long lifespan, less maintenance

Feature 2

ColorQuick technology - Integrated switch allows for 3000K, 4000K and 5000K CCT Selections

Feature 3

Damp location rated for indoor or outdoor use

Feature 4

Rated for totally enclosed fixtures

Feature 5

Reduced jacket size and built-in surge protection

Feature 6

FCC/RoHS compliant

Feature 7

Superior 80 CRI light quality

Flourescent Equivalent

65W

Has Driver

Has Emergency Battery

HID Equivalent

100W-150W

Housing Color

White

Incandescent Equivalent

200W

Indoor Outdoor

Indoor;Outdoor

Installation Notes

Not for use in vapor tight fixtures.

IOT Enabled

IP Rating

IP64

Lamp Ballast Type A/B/C

Type B

Lamp Filament

LED

Lens Finish

Frost

Lens Material

Polycarbonate (PC)

Location Rating

Damp

Long Description

S13161, Satco's 25-watt medium base A-Plus 23 lamp, is one of the newest additions to the Hi-Pro LED family, providing up to 85% energy savings and advanced features. ColorQuick CCT selectable technology means more versatility and custom-tailored light

Material

Aluminum

Minimum Compartment Size

Length: 6 in. Width: 6 in. Height: 8.5 in.

Operating Frequency

50/60Hz

Operating Temp

-22C (-30F) to +45C (+113F)

Order In Multiples Of

Pack Type

Box

Power Factor

>0.9

Quantity In Pack

R9 Value

RoHS Compliant

Yes

Romance Copy

Satco's newest additions to the Hi-Pro LED family provides up to 85% in energy savings, and advanced features. CCT and wattage selectable capability means more versatility and custom-tailored light for specific applications. Designed to produce high-ou

SDS class

LED_Lamp

Short Description

25W/AP23/LED/CCT/100-277V/E26

Specification Notes

Lumen/Watt/CCT Ratio Chart in Documents.

Style

Contemporary

Surge Protection

Built-in surge protection - 1KV

Technology

LED

Title 20 Compliant

Wattage Selectable

Watts

25W
