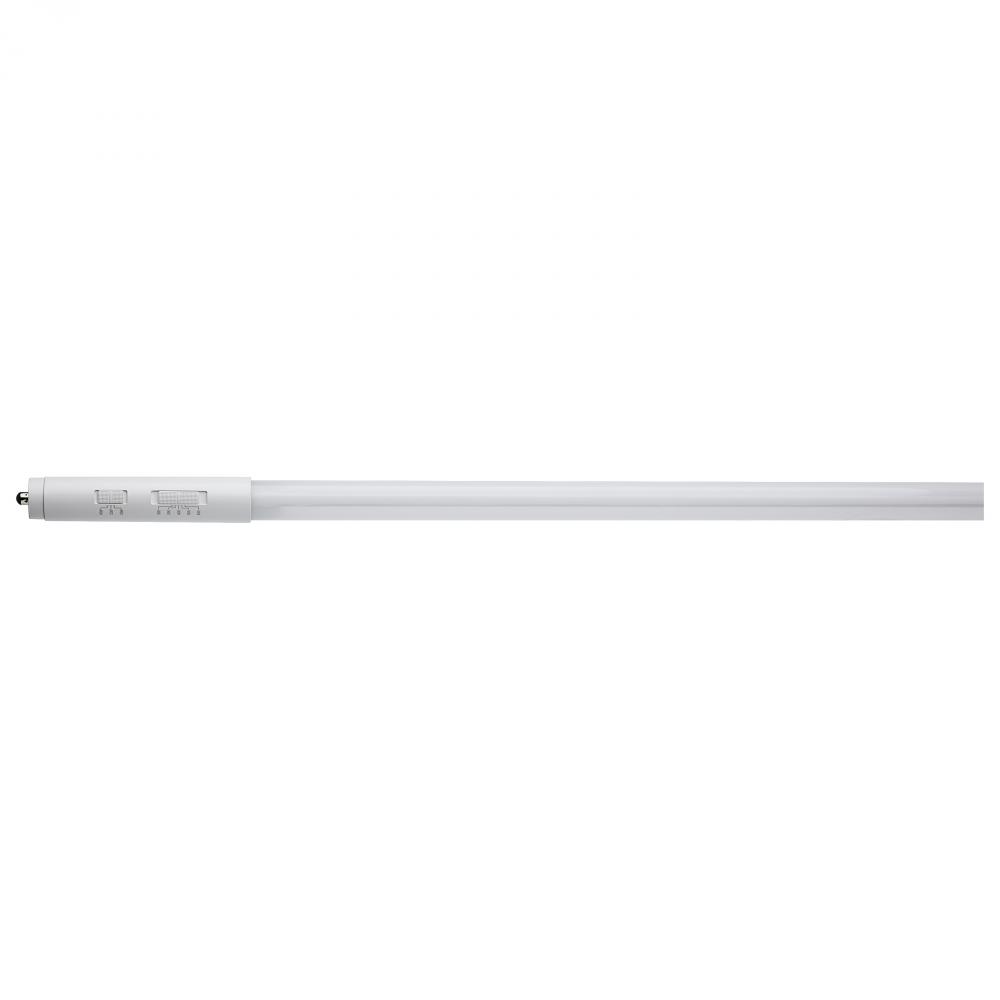

24/32/40 Wattage Selectable; 8 Foot T8 LED; 30/35/40/50/65K CCT Selectable; 120-277 Volt; FA8 Base

Image may not reflect selected features

24/32/40 Wattage Selectable; 8 Foot T8 LED; 30/35/40/50/65K CCT Selectable; 120-277 Volt; FA8 Base (X6PE1)

24/32/40 Wattage Selectable; 8 Foot T8 LED; 30/35/40/50/65K CCT Selectable; 120-277 Volt; FA8 Base

Product Specification

Item #

X6PE1

Dimensions

Width: 1.00"

Additional product details

Internal #

X6PE1

Category

LED

Sub-Category

LED T8

Volts

120V-277V

Bulb Hours

50000

Bulb Kelvin

3000K/3500K/4000K/5000K/6500K

Bulb Shape

Diameter

EA Length

48.39

Harmonized Codes

8539.52.0051

Length

93.75

Lumens

3500L/4400L/5500L

Shap Carton Width

6.5

Ship Carton Height

7.44

Ship Weight

12.1

Warranty

5 Year Limited - T8 LED Bulbs - Ballast Bypass

Weight

0.98

BAA Compliant

Ballasting Requirements

Type B Ballast Bypass

Beam Spread

210

Bulb ANSI Base

Fa8

Bulb Base

Single Pin

Bulb Finish

White

Burning Position

Universal

Carton Cubic Feet

1.3542

Cartons Per Unit

CCT Selectable

Yes

CEC

Exempt - Base Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Color Temprature

Soft White to Daylight

Country Of Origin

China

CRI

DLC Approved

Yes

DLC Classification

Standard

DLC ID

S-HPN8SY

DLC Primary Use

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy

145.83/137.50/137.50 LPW

Enclosed Fixture Use

Yes

Enclosure Rating

Both

FCC Compliant

Yes

Feature 1

Field Selectable: 3 Wattage and 5 CCT

Feature 10

Suitable for use in enclosed fixtures

Feature 2

DLC Listed when used in Fa8 applications

Feature 3

Optional R17d base caps included

Feature 4

Includes C-clip for extra support where tubes connect

Feature 5

PET Coated glass tube

Feature 6

Compatible with optional 10W emergency driver

Feature 7

Damp Location Rated

Feature 8

Range Voltage 120V-277V

Feature 9

210 Degree Beam Angle

Flourescent Equivalent

40W/55W/70W

Incandescent Equivalent

100W

Includes

(20) R17d Base Adapters and (10) Fastening Clips included per case

Installation Notes

Not for use in vapor tight fixtures. Must use both sections; Provided support clips may differ from current PI Sheet (SN1394). Please refer to the Instruction Sheet provided in the master carton or downloaded from the website, https://www.satco.com/search/

IOT Enabled

JA8 Compliant

Lamp End Type

Double Ended

Lamp Filament

LED

Location Rating

Damp

Long Description

SATCO|NUVO is always looking for the best ways to save time and costs on the job-site. The unique 2-piece design of the S11756 T8 lamp allows for reduced shipping costs and easier installation than a single 8-foot long tube by using two 4-foot sections tha

Material

Glass

Minimum Compartment Size

Length: 96.06 in. Width; 10.63 in. Height: 2.76 in.

Nominal Length

NSF Approved

Yes

Operating Frequency

50/60Hz

Operating Temp

-20C (-4F) to +45C (+113F)

Order In Multiples Of

Pack Type

Egg Crate

Power Factor

0.9

Quantity In Pack

R9 Value

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO is always looking for the best ways to save time and costs on the job-site. The unique 2-piece design of this T8 lamp allows for reduced shipping costs and easier installation than a single 8-foot long tube by using two 4-foot sections that secu

SDS class

LED_Lamp

Shatter Proof Text

PET Coated

Short Description

40T8/LED/96-CCT/BP/2PC

Style

Utility

Technology

LED

Title 20 Compliant

Title 24 Compliant

Total Harmonic Distortion

20%

Wattage Selectable

Yes

Watts

24W/32W/40W

Finish Family

Additional options that would change other selections

Call for Price

Qty:

Add To Quote

Add To Estimate

Add To Wishlist

Save To Compare

Availability:

Manufacturer has 2035 items available.
