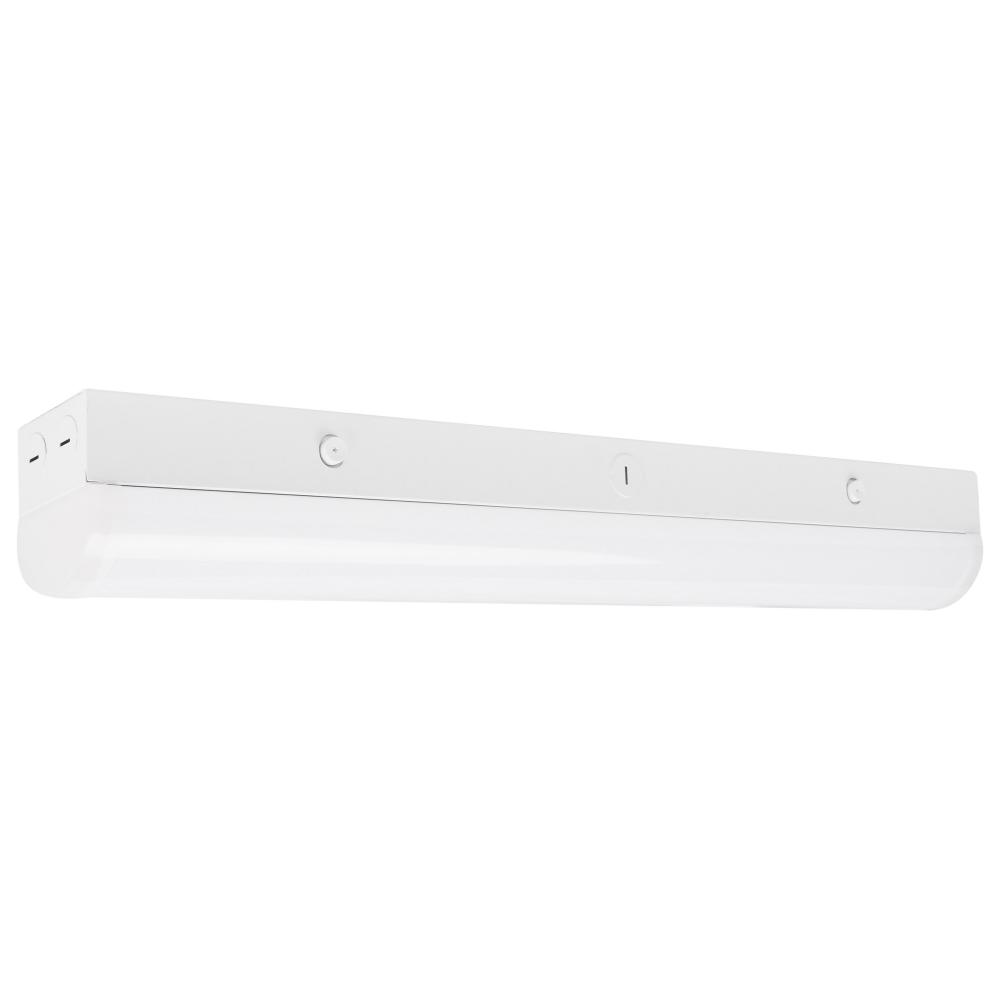

2 ft. LED; Linear Strip Light; CCT Selectable; White Finish; 100-277 Volt
Image may not reflect selected features
/vendors/81/large/65-700.jpg
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
2 ft. LED; Linear Strip Light; CCT Selectable; White Finish; 100-277 Volt (A36GV)
2 ft. LED; Linear Strip Light; CCT Selectable; White Finish; 100-277 Volt
Product Specification
Item #
A36GV
Dimensions
Height: 3.27"
Width: 2.95"
Additional product details
Internal #
A36GV
Category
Undercabinet
Subcategory
Strip Lights
Finish
White
Style
Traditional
Option
LED , Prop 65
Lumens
2601-3000
Kelvin
4001-4500
Category
Linear Strip
Sub Category
Strip Fixture
Style
Utility
Additional Info
Other DLC Listings: PL5HHJWSKN81, Standard, Direct Linear Ambient Luminaires.
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Neutral White to Daylight
Dimmable
Yes-Dimmable
Each Height
5.31
Each Length
26.1
Each Width
5.2
Length
24
Lumens
2735L-2830L
Tariff Code
9405.11.6010
Warranty
5 Year Limited - Fixtures
Amps
0.200-0.072A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
120
B_U_G_Rating
B1-U3-G1
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 10 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium; Standard
DLC Primary Use
Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires
Each Cube
0.4171
Each Quantity
1
Efficacy
136.75/139.13/141.50 LPW
FCC Compliant
Yes
Feature 1
Flicker Free Driver
Feature 2
CCT Selectable
Feature 3
Multiple Mounting Options
Feature 4
Optional Suspension Kit (65/706)
Feature 5
Optional Add On Microwave Sensor (86/202)
Feature 6
Optional Add On PIR Sensor (86/211)
Feature 7
5 Year Warranty
Finish Family
White
Flicker Free
Yes
Has Driver
Yes
Has Emergency Battery
No
HID Equiv
100W-150W
Incandescent Equivalent
150W-175W
Indoor Outdoor
Indoor
IOT Enabled
No
IP Rating
IP20
JA8 Compliant
No
Lens Finish
White
Lens Material
Polycarbonate (PC)
Long Description
Introducing another addition to our LED strip lights line. SATCO|NUVO's 65-700 is a new cULus listed 20-Watt, 2-foot strip addition is CCT selectable (3500K/4000K/5000K) with a voltage range of 100-277 volts, and is 0-10 volt dimmable. It has a flicker
Material
Steel
Mounting Diameter
4.75
Mounting Procedure
Ceiling/Wall
NSF Approved
No
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +60C (+140F)
Pack Type
Box
Photocell
Optional Add-On
Power Factor
0.9
Quantity In Pack
1
R9 Value
12
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Introducing another addition to our LED strip lights line. This new cULus listed 20-Watt, 2-foot strip addition is CCT selectable (3500K/4000K/5000K) with a voltage range of 100-277 volts, and is 0-10 volt dimmable. It has a flicker free driver, is IP20 ra
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
2' LINEAR STRIP WHITE FINISH
Sloped Ceiling Compatible
Yes
Specification Notes
Add on sensors, 86-202 and 86-211, are only rated for 120-277 Volt
Temperature (CCT)
3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
13.61%
Wattage Selectable
No
Weight Lb.
1.78
